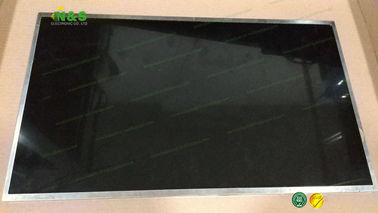

Normally White TFT LG LCD Panel 15.6 inch 344.16×193.59 mm Frequency 60Hz LP156WFC-TLB1

Normally White TFT LG LCD Panel 15.6 inch 344.16×193.59 mm Frequency 60Hz LP156WFC-TLB1

Normally White TFT LG LCD Panel 15.6 inch 344.16×193.59 mm Frequency 60Hz LP156WFC-TLB1

Product Details:

Place of Origin: KOREA
Brand Name: LG Display
Certification: ISO9001
Model Number: LP156WFC-TLB1

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time: 1-3 Working Days
Payment Terms: Western Union, T/T, MoneyGram, T/T
Supply Ability: 500PCS/DAY
Contact Now
Detailed Product Description
Panel Type: A-Si TFT-LCD Panel Size: 15.6 Inch
Resolution: 1920×1080 Active Area: 344.16×193.59 Mm
Outline: 359.3×209.5×5.7 Mm

Normally White LP156WFC-TLB1 TFT-LCD ,15.6 inch, 1920×1080 Active Area 344.16×193.59 mm Frequency 60Hz



LP156WFC-TLB1 Mechanical Features

Dot Resolution 1920(RGB)×1080 (FHD)
Pixel Configuration RGB Vertical Stripe
Pixel Density 141 PPI
Aspect Ratio 16:9 (H:V)
Form Factor Flat Rectangle Display
Dot Pitch 0.05975×0.17925 mm (H×V)
Pixel Pitch 0.17925×0.17925 mm (H×V)
Weight 480g (Max.)
Surface Antiglare
Active Area 344.16×193.59 mm (H×V)
Bezel Area 349.8×197.1 mm (H×V)
Outline Dimension 359.3×209.5 mm (H×V)
Outline Depth 5.7 (Max.) mm
Shape Style Wedge (PCBA Bent, Depth ≥5.2mm)
Holes & Brackets Side mounting holes (8-M2) on left, right bezel
Landscape or Portrait Landscape type
Touch Panel Without


LP156WFC-TLB1 Optical Features

Display Mode TN, Normally White, Transmissive
Brightness 300 cd/m² (Typ.)
Contrast Ratio 500 : 1 (Typ.) (Transmissive)
Display Color 262K (6-bit)
Response Time 8 (Typ.)(Tr+Td)
Viewing Angle 60/60/50/50 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction 6 o'clock
White color Chromaticity Wx:0.313; Wy:0.329
White Variation 1.4/1.6 (Typ./Max.)(13 points)
Sunlight Readable N


LP156WFC-TLB1 Electronics Feature

Vertical Frequency 60Hz
Reverse Scan No
Total Power Consumption 8.0W (Max.)


Shipment for the LCD Display Panels:
1. Safe & Professional package for our LCD panels.
2. We can ship to you by UPS/FEDEX/DHL/TNT and so on. Other shipping terms can also be arranged according to specific requirements.
3. We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service.
4. All our LCD panel will be tested pcs by pcs before been shipped out.

Competitive Advantage:
1. We are a leading vendor & distributor for the LCD panels for more than 6 years.
2. We got the ISO9001 quality management system certification.
3. We have our own sourcing line & agency for the hard-to-find & shortage LCD panel models.
4. We are the professional team for the LCD screen sourcing & international trade with 6-year experience.
5. Prompt delivery, we always have the LCD panels in stock. Delivery can be made in 1-3 working days.
6. 1-year warranty is offered.
7. All LCD Panel will be tested before shipment.
8. We are the vendor & distributor in LCD panel area already for 6 years. We own our professional & competitive LCD screen sourcing line.

Here comes our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
LC650EQK-FGK5 LG Display 65" 3840×2160
LB164WH1-SJA1 LG Display 16.4" 1366×238
LH550QH1-SH01 LG Display 5.5" 1440×2560
LC420EGY-SGM1 LG Display 42" 3840×2160
LC430DUY-SHA1 LG Display 43" 1920×1080
LD079X02-SHA1 LG Display 7.9" 768×1024
LH550WF2-SH01 LG Display 5.5" 1080×1920
LC490EGY-SHM1 LG Display 49" 3840×2160
LC550DUJ-SGE3 LG Display 55" 1920×1080
LC490DUJ-SGE3 LG Display 49" 1920×1080

Pls contact to us for more stock information: salespm@nselectronic.com.hk
