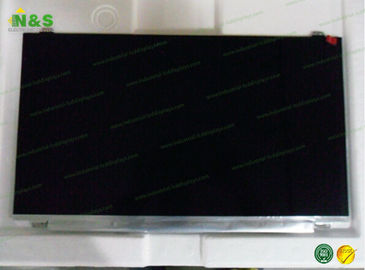

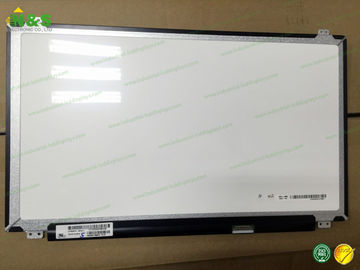

15.6 inch LP156WF4-SPH3 TFT LCD Module Outline 359.5×223.8×3.2 mm Surface Antiglare

15.6 inch LP156WF4-SPH3 TFT LCD Module Outline 359.5×223.8×3.2 mm Surface Antiglare

    • 15.6 inch LP156WF4-SPH3 TFT LCD Module Outline 359.5×223.8×3.2 mm Surface Antiglare
    • 15.6 inch LP156WF4-SPH3 TFT LCD Module Outline 359.5×223.8×3.2 mm Surface Antiglare
  • 15.6 inch LP156WF4-SPH3 TFT LCD Module Outline 359.5×223.8×3.2 mm Surface Antiglare

    Product Details:

    Place of Origin: KOREA
    Brand Name: LG Display
    Certification: ISO9001
    Model Number: LP156WF4-SPH3

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
    Delivery Time: 1-3 Working Days
    Payment Terms: Western Union, T/T, MoneyGram, T/T
    Supply Ability: 500PCS/DAY
    Contact Now
    Detailed Product Description
    Panel Brand: LG Display Panel Type: A-Si TFT-LCD
    Outline: 359.5×223.8×3.2 Mm Surface: Antiglare
    Frequency: 60 Hz

    Normally Black 15.6 inch LP156WF4-SPH3 TFT LCD Module Outline 359.5×223.8×3.2 mm Surface Antiglare


    FAQ
    Q1: What's the quality of your Hard Disk?
    A: Various brands for hard disk etc. We are available to meet your different requirements.
    Q2: What is your return and refund policy?
    A: We provide you excellent after-sales services, and promise you 12-month warranty after shipping to assure you a stable performance.
    Q4: How long is the lead time?
    A: The lead time is about 2-3 working days after receipt of payment.
    Q5: Do you accept sample order?
    A:Yes, sample order is welcome.
    Q6: How can I get the quotation?
    A: Please enquire via Skype, Email, Whatsapp or telephone. You will get reply within 24 hours.

    Guarantee:
    (1) All items will be strictly tested and shipped with safe & professional package.
    (2) We have 2~6months warranty for every LCD screen panels, depend on the different LCD panel models.
    (3) We will do our best to solve any possible problem for your after sale. Please contact to us.

    Below are our other LCD panels stock for your easy reference:

    Panel Model Brand Size Resolution
    LC470DUT-SEF2 LG Display 47" 1920×1080
    LC550EGY-SHM1 LG Display 55" 3840×2160
    LC550EQK-FGK3 LG Display 55" 3840×2160
    LC420DUJ-SGE3 LG Display 42" 1920×1080
    LH450WX3-SH01 LG Display 4.5" 720×1280
    LC490EQJ-SGE2 LG Display 49" 3840×2160
    LH470WX3-SH02 LG Display 4.7" 720×1280
    LH600WX1-SH01 LG Display 6.0" 720×1280
    LC490EQJ-SGK1 LG Display 49" 3840×2160
    LC420EQJ-SGE2 LG Display 42" 3840×2160

    We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk


    LP156WF4-SPH3 Basic Information

    Panel Model LP156WF4-SPH3
    Panel Brand LG Display
    Descrition a-Si TFT-LCD ,15.6 inch, 1920×1080
    Panel Type a-Si TFT-LCD
    Model Alias LP156WF4 (SP)(H3)
    Operating Temperature 0 ~ 50 °C
    Storage Temperature -20 ~ 60 °C


    LP156WF4-SPH3 Mechanical Features

    Dot Resolution 1920(RGB)×1080 (FHD)
    Pixel Configuration RGB Vertical Stripe
    Pixel Density 141 PPI
    Aspect Ratio 16:9 (H:V)
    Form Factor Flat Rectangle Display
    Dot Pitch 0.05975×0.17925 mm (H×V)
    Pixel Pitch 0.17925×0.17925 mm (H×V)
    Weight 340/350g (Typ./Max.)
    Surface Antiglare
    Active Area 344.16×193.59 mm (H×V)
    Bezel Area 347.6×196.9 mm (H×V)
    Outline Dimension 359.5×223.8 mm (H×V)
    Outline Depth 3.2 (Max.) mm
    Shape Style Slim (PCBA Flat, Depth ≤3.2mm)
    Holes & Brackets Face mounting holes (8 pcs) on up, down slugs
    Landscape or Portrait Landscape type
    Touch Panel Without


    LP156WF4-SPH3 Optical Features

    Display Mode IPS, Normally Black, Transmissive
    Brightness 300 cd/m² (Typ.)
    Contrast Ratio 700 : 1 (Typ.) (Transmissive)
    Display Color 262K (6-bit)
    Color Gamut 60% NTSC (CIE1931)
    Response Time 35 (Typ.)(Tr+Td)
    Viewing Angle 80/80/80/80 (Min.)(CR≥10) (L/R/U/D)
    Viewing Direction Symmetry
    White color Chromaticity Wx:0.313; Wy:0.329
    White Variation 1.40/1.60 (Typ./Max.)(13 points)
    Sunlight Readable N
