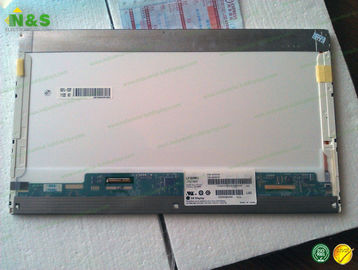

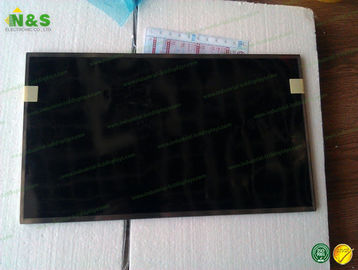

TFT LCD Module / LG LCD Panel Display Normally White 1600×900 resolution LP156WD1-TLB2

TFT LCD Module / LG LCD Panel Display Normally White 1600×900 resolution LP156WD1-TLB2

    • TFT LCD Module / LG LCD Panel Display Normally White 1600×900 resolution LP156WD1-TLB2
    • TFT LCD Module / LG LCD Panel Display Normally White 1600×900 resolution LP156WD1-TLB2
  • TFT LCD Module / LG LCD Panel Display Normally White 1600×900 resolution LP156WD1-TLB2

    Product Details:

    Place of Origin: KOREA
    Brand Name: LG Display
    Certification: ISO9001
    Model Number: LP156WD1-TLB2

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
    Delivery Time: 1-3 Working Days
    Payment Terms: Western Union, T/T, MoneyGram, T/T
    Supply Ability: 500PCS/DAY
    Contact Now
    Detailed Product Description
    Panel Type: A-Si TFT-LCD Panel Size: 15.6 Inch
    Resolution: 1600×900 Surface: Antiglare, Hard Coating (3H)
    Active Area: 344.16×193.59 Mm Outline: 359.3×209.5×5.7 Mm

    New and original LP156WD1-TLB2 TFT LCD Module LG Display with Normally White 1600×900 resolution



    LP156WD1-TLB2 Basic Information

    Panel Model LP156WD1-TLB2
    Panel Brand LG Display
    Descrition a-Si TFT-LCD ,15.6 inch, 1600×900
    Panel Type a-Si TFT-LCD
    Model Alias LP156WD1 (TL)(B2)
    Operating Temperature 0 ~ 50 °C
    Storage Temperature -20 ~ 60 °C
    Remarks for Lenovo P/N:42T0742, RFU:42T0743


    LP156WD1-TLB2 Mechanical Features

    Dot Resolution 1600(RGB)×900 (HD+)
    Pixel Configuration RGB Vertical Stripe
    Pixel Density 118 PPI
    Aspect Ratio 16:9 (H:V)
    Form Factor Flat Rectangle Display
    Dot Pitch 0.0717×0.2151 mm (H×V)
    Pixel Pitch 0.2151×0.2151 mm (H×V)
    Weight 450/470g (Typ./Max.)
    Surface Antiglare, Hard coating (3H)
    Active Area 344.16×193.59 mm (H×V)
    Bezel Area 349.8×197.1 mm (H×V)
    Outline Dimension 359.3×209.5 mm (H×V)
    Outline Depth 5.7 (Max.) mm
    Shape Style Wedge (PCBA Bent, Depth ≥5.2mm)
    Holes & Brackets Side mounting holes (8-M2) on left, right bezel
    Landscape or Portrait Landscape type
    Touch Panel Without


    What’s our advantage compared with other suppliers?

    (1). Before shipment, we will test every LCD Screen and ensure the quality.

    (2). we provide high quality lcd panels for customers all over the world.

    (3) .We have DBS, ISO9001 Certifications for our Panels.

    (4) .Excellent service on before-sale, on-sale and after-sale.



    Packaging & Delivery

    · Delivery Lead Time :2~3 weeks

    · Minimum Order :1 pcs LCD Panel

    · Supply Ability :100 PCS / Per Day



    Here comes our other LCD panels stock for your easy reference:

    Panel Model Brand Size Resolution
    LD070WX7-SH01 LG Display 7.0" 800×1280
    LD070WS2-SH02 LG Display 7.0" 1024×600
    LA070WV1-TH01 LG Display 7.0" 800×480
    LH550WX1-SH02 LG Display 5.5" 720×1280
    LD079X01-SHC4 LG Display 7.9" 768×1024
    LH470WX3-SH01 LG Display 4.7" 720×1280
    LC550EUJ-FFK1 LG Display 55" 1920×1080
    LH520WF1-SH01 LG Display 5.2" 1080×1920
    LC490DUJ-SGK1 LG Display 49" 1920×1080
    LC490DUJ-SGE1 LG Display 49" 1920×1080

    Pls contact to us for more stock information: salespm@nselectronic.com.hk
