Product Details:
|
| Panel Type: | A-Si TFT-LCD | Panel Size: | 15.6 Inch |
|---|---|---|---|
| Resolution: | 1920×1080 | Active Area: | 344.16×193.59 Mm |
| Frequency: | 60Hz | Input Voltage: | 3.3V (Typ.) |
| High Light: | industrial lcd screen,industrial lcd panel |
||

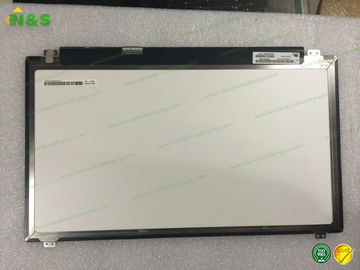

Normally Black LP156WF6-SPF1 15.6 inch,1920×1080 Active Area 344.16×193.59 mm Frequency 60Hz
LP156WF6-SPF1 Basic Information
| Panel Model | LP156WF6-SPF1 |
| Panel Brand | LG Display |
| Descrition | a-Si TFT-LCD ,15.6 inch, 1920×1080 |
| Panel Type | a-Si TFT-LCD |
| Model Alias | LP156WF6 (SP)(F1) |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
LP156WF6-SPF1 Mechanical Features
| Dot Resolution | 1920(RGB)×1080 (FHD) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 141 PPI |
| Aspect Ratio | 16:9 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.05975×0.17925 mm (H×V) |
| Pixel Pitch | 0.17925×0.17925 mm (H×V) |
| Weight | 340/350g (Typ./Max.) |
| Active Area | 344.16×193.59 mm (H×V) |
| Bezel Area | 347.45×196.8 mm (H×V) |
| Shape Style | Slim (PCBA Flat, Depth ≤3.2mm) |
| Landscape or Portrait | Landscape type |
LP156WF6-SPF1 Electronics Feature
| Vertical Frequency | 60Hz |
| Reverse Scan | No |
| Total Power Consumption | 5.4W (Typ.) |
LP156WF6-SPF1 Backlight System
| Lamp Position | Edge light type |
| Lamp Type | WLED |
| Lamp Life Time | 12K(Min.) (Hours) |
| Interface Type | Included in panel signal interface |
| Lamp Driver Board | 4.3/4.4W (Typ./Max.) |
