Product Details:
|
| Panel Type: | A-Si TFT-LCD | Resolution: | 1280×800 |
|---|---|---|---|
| Active Area: | 216.96×135.6 Mm | Outline: | 241.86×161.6×5.2 Mm |
| Contrast Ratio: | 500:1 (Min.) | Frequency: | 60Hz |
| High Light: | lg display panel,lg replacement screen |
||

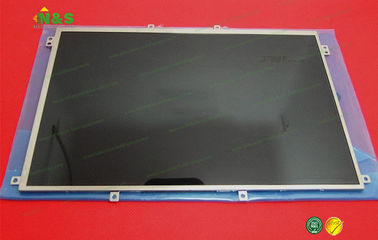

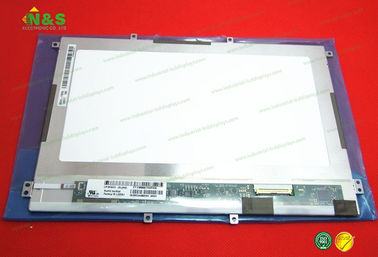

Normally Black LP101WX1-SLN2 LG Display a-Si TFT-LCD 10.1 inch 1280×800 Active Area 216.96×135.6 mm
LP101WX1-SLN2 Basic Information
| Panel Model | LP101WX1-SLN2 |
| Panel Brand | LG Display |
| Descrition | a-Si TFT-LCD ,10.1 inch, 1280×800 |
| Panel Type | a-Si TFT-LCD |
| Model Alias | LP101WX1 (SL)(N2) |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
LP101WX1-SLN2 Mechanical Features
| Dot Resolution | 1280(RGB)×800 (WXGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 149 PPI |
| Aspect Ratio | 16:10 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.0565×0.1695 mm (H×V) |
| Pixel Pitch | 0.1695×0.1695 mm (H×V) |
| Weight | 160g (Max.) |
| Surface | Glare (Haze 0%), Reflection 1.5% (Typ.) |
| Active Area | 216.96×135.6 mm (H×V) |
| Bezel Area | 221.6×140.3 mm (H×V) |
| Outline Dimension | 241.86×161.6 mm (H×V) |
| Outline Depth | 3.35/5.2 (Max.) mm |
| Holes & Brackets | Face mounting holes (10 pcs) on left, right, up, down slugs |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
LP101WX1-SLN2 Optical Features
| Display Mode | IPS, Normally Black, Transmissive |
| Brightness | 350 cd/m² (Typ.) |
| Contrast Ratio | 500 : 1 (Min.) (Transmissive) |
| Display Color | 262K (6-bit) |
| Response Time | 35 (Typ.)(Tr+Td); 24 (Typ.)(G to G) |
| Viewing Angle | 80/80/80/80 (Min.)(CR≥10) (L/R/U/D) |
| Viewing Direction | Symmetry |
| White color Chromaticity | Wx:0.313; Wy:0.329 |
| White Variation | 1.40/1.60 (Typ./Max.)(13 points) |
| Sunlight Readable | N |
Company information:
About Us:
N&S Technology CO., LTD was established in 2010, Specialize in the LCD Panels sourcing & agency for the international trade.
Our products have passed the certification of ISO9001 Quality Management System, we have a wealth of professional experience and strong sourcing team & international sales team. N&S always walk in the forefront of the industry in the fierce market competition, with unremitting efforts to achieve development!
LP101WX1-SLN2 Signal Interface
| Signal Category | LVDS |
| Signal Class | LVDS (1 ch, 6-bit) |
| Input Voltage for Panel | 3.3V (Typ.) |
| Input Current for Panel | 303/348mA (Typ./Max.) |
| Panel Power Consumption | 1.0/1.15W (Typ./Max.) |
| Interface Type | Connector |
| Interface Position | |
| Signal Interface | UJU - IS050-L40B-C10, Pitch:0.5 mm, Pin:40 pins |
Feature:
1) 100% Brand New and never used Touch Screen Digitizer.
2) Tested before shipping and 100% working well.
3) Delivery in 3 working days after payment confirmed.
4) Excellent after-sale service.
5) Great replacements for your LCD panels’ sourcing replenishment.
6) Each screen will be tested before shipping and 100% working guarantee.
