Product Details:
|
| Panel Size: | 10.4 Inch | Resolution: | 800×600 |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD | Active Area: | 211.2×158.4 Mm |
| Outline: | 224.5×172 Mm | Surface: | Antiglare, Hard Coating (3H) |
| High Light: | lg lcd display,lg replacement screen |
||

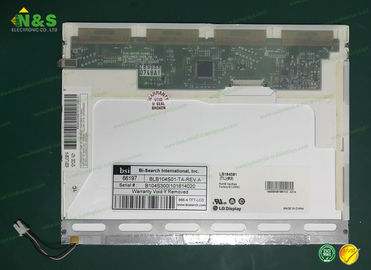

LG Display LB104S01-TL04 10.4 inch Surface Antiglare, Hard coating (3H) 800×600 Frequency 60Hz
LB104S01-TL04 Basic Information
| Panel Model | LB104S01-TL04 |
| Panel Brand | LG Display |
| Descrition | a-Si TFT-LCD ,10.4 inch, 800×600 |
| Panel Type | a-Si TFT-LCD |
| Model Alias | LB104S01 (TL)(04) |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
LB104S01-TL04 Mechanical Features
| Dot Resolution | 800(RGB)×600 (SVGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 96 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.088×0.264 mm (H×V) |
| Pixel Pitch | 0.264×0.264 mm (H×V) |
| Weight | 400/410g (Typ./Max.) |
| Surface | Antiglare, Hard coating (3H) |
| Active Area | 211.2×158.4 mm (H×V) |
| Bezel Area | 214.2×161.8 mm (H×V) |
| Outline Dimension | 224.5×172 mm (H×V) |
| Outline Depth | 7.2±0.5 mm |
| Holes & Brackets | Side mounting holes (4-M2) |
| Landscape or Portrait | Landscape type |
| Touch Panel | Embeded (4-wire Resistive) |
LB104S01-TL04 Optical Features
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 200 cd/m² (Typ.) |
| Contrast Ratio | 400 : 1 (Typ.) (Transmissive) |
| Display Color | 262K (6-bit) |
| Response Time | 6/19 (Typ.)(Tr/Td) |
| Viewing Angle | 65/65/45/55 (Min.)(CR≥10) (L/R/U/D) |
| Viewing Direction | 6 o'clock |
| White color Chromaticity | Wx:0.305; Wy:0.320 |
| White Variation | 1.40 (Max.)(9 points) |
| Sunlight Readable | N |
Competitive Advantage:
1. Rich experience.
Having been specialized in this field for years, we have rich experience and widespread sales network around the word.
2. Great quality and high purity
Good quality is one secret for our success.
3. Safest and fastest delivery.
We have mass stock, so that we can arrange the delivery within 24hours once receiving the payment. Tracking number would be informed quickly after shipment.
4. Good after-sales service.
24/7 is available. Try our best to solve various problems customers encountered!
Shipment for the LCD Display Panels:
1. Safe & Professional package for our LCD panels.
2. We can ship to you by UPS/FEDEX/DHL/TNT and so on. Other shipping terms can also be arranged according to specific requirements.
3. We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service.
4. All our LCD panel will be tested pcs by pcs before been shipped out.
