Product Details:
|
| Panel Model: | G215HVN01.0 S03 | Panel Size: | 21.5 Inch |
|---|---|---|---|
| Resolution: | 1920×1080 | Display Mode: | AMVA3, Normally Black, Transmissive |
| Active Area: | 476.64×268.11 Mm | Outline: | 495.6×292.2×13.2 Mm |
| High Light: | auo display panel,auo lcd display |
||
Normally Black with 476.64×268.11 mm Active Area G215HVN01.0 S03 TFT LCD Module AUO
G215HVN01.0 S03 Information
| Panel Model | G215HVN01.0 S03 |
| Panel Brand | AUO |
| Descrition | a-Si TFT-LCD ,21.5 inch, 1920×1080 |
| Panel Type | a-Si TFT-LCD |
| Display Mode | AMVA3, Normally Black, Transmissive |
| Active Area | 476.64×268.11 mm |
| Outline | 495.6×292.2×13.2 mm |
| Surface | Antiglare, Hard coating (3H) |
| Contrast Ratio | 5000:1 (Typ.) |
| Display Colors | 16.7M (8-bit) , CIE1931 75% |
| Response Time | 20/5 (Typ.)(Tr/Td) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 13S5P WLED Embedded (LED Driver) |
| Signal Interface | LVDS (2 ch, 8-bit) , 30 pins |
| Input Voltage | 5.0V (Typ.) |
| Panel Model | Brand | Size | Resolution |
| X139BLB01.0 | AUO | 1.39" | 400×400 |
| H381DLN01.0 | AUO | 3.8" | 1080×1200 |
| H497TLB01.4 | AUO | 5.0" | 720×1280 |
| H163QLN01.0 | AUO | 1.63" | 320×320 |
| H139BLN01.2 | AUO | 1.39" | 400×400 |
| H500TLB01.0 | AUO | 5.0" | 720×1280 |
| X546DLB01.0 | AUO | 5.5" | 1080×1920 |
| H546DLB01.1 | AUO | 5.5" | 1080×1920 |
Pls contact to us for more stock information: salespm@nselectronic.com.hk
FAQ
Q1: How do we place an order?
A1: Please kindly send us an email specifying the item No., replacements, quantity, other specifications for the Hard disk to place an order.
Q2: How do we make the payment?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: What's the delivery time?
A3: The delivery time is normally 1-3 working days after payment.
Q4: How would the goods be shipped?
A4: We ship via DHL, UPS, TNT and others.

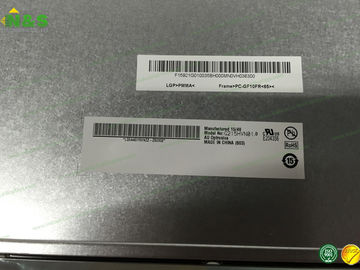

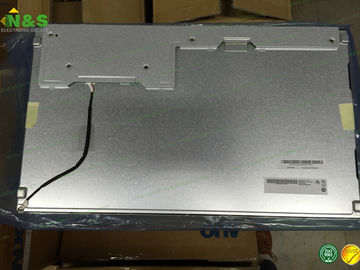

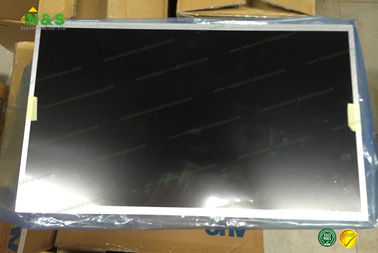

G215HVN01.0 S03 Picture
