Product Details:
|
| Panel Model: | A085FW01 V7 | Panel Size: | 8.5 Inch |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD | Display Mode: | TN, Normally White, Transmissive |
| Outline: | 199×119 Mm | Contrast Ratio: | 300:1 (Typ.) |
| High Light: | auo lcd screen,auo lcd display |
||
Normally White AUO LCD MODULE A085FW01 V7 8.5 inch Surface Antiglare Display Colors Full color
| Panel Model | A085FW01 V7 |
| Panel Brand | AUO |
| Descrition | a-Si TFT-LCD ,8.5 inch, 480×234 |
| Panel Type | a-Si TFT-LCD |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 187.2×105.3 mm |
| Outline | 199×119 mm |
| Surface | Antiglare |
| Contrast Ratio | 300:1 (Typ.) |
| Display Colors | Full color |
| Response Time | 12/18 (Typ.)(Tr/Td) |
| Viewing Angle | 65/65/50/65 (Typ.)(CR≥10) (L/R/U/D) |
| Lamp Type | 3S9P WLED Without Driver |
| Signal Interface | TFT Specific Analog RGB , 26 pins |
| Input Voltage | 5/5/15/-10V (Typ.)(VCC/AVDD/VGH/VGL) |
FAQ
Q1: What's the quality of your Hard Disk?
A: Various brands for hard disk etc. We are available to meet your different requirements.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 12-month warranty after shipping to assure you a stable performance.
Q4: How long is the lead time?
A: The lead time is about 2-3 working days after receipt of payment.
Q5: Do you accept sample order?
A:Yes, sample order is welcome.
Q6: How can I get the quotation?
A: Please enquire via Skype, Email, Whatsapp or telephone. You will get reply within 24 hours.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| X139BLB01.0 | AUO | 1.39" | 400×400 |
| H381DLN01.0 | AUO | 3.8" | 1080×1200 |
| H497TLB01.4 | AUO | 5.0" | 720×1280 |
| H163QLN01.0 | AUO | 1.63" | 320×320 |
| H139BLN01.2 | AUO | 1.39" | 400×400 |
| H500TLB01.0 | AUO | 5.0" | 720×1280 |
| X546DLB01.0 | AUO | 5.5" | 1080×1920 |
| H546DLB01.1 | AUO | 5.5" | 1080×1920 |
| H429ALN01 V0 | AUO | 4.3" | 540×960 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
Packaging & Delivery
Packaging Details:
Antistatic bag + Bubble bag + Foam box + Carton box
Delivery Detail:
1-3 working days after payment confirmed

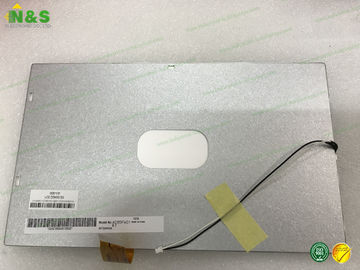

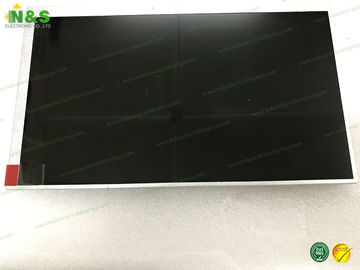

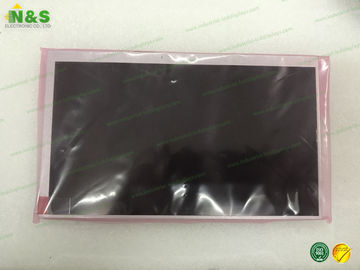

A085FW01 V7 Picture
