Product Details:
|
| Panel Model: | G185XW01 V2 | Size: | 18.5 Inch |
|---|---|---|---|
| Frequency: | 60Hz | Active Area: | 409.8×230.4 Mm |
| Outline: | 430.4×254.7×13.2 Mm | Panel Type: | A-Si TFT-LCD |
| High Light: | auo lcd screen,auo lcd display |
||

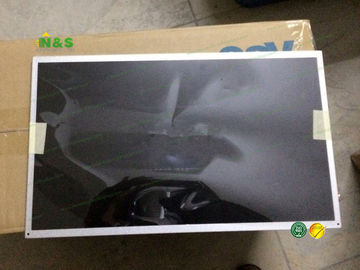

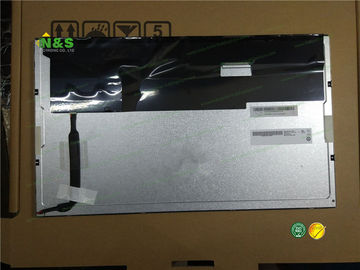

G185XW01 V2 18.5 inch AUO LCD Panel 409.8×230.4 mm Active Area 60Hz Frequency
What’s our advantage compared with other suppliers?
(1). Before shipment, we will test every LCD Screen and ensure the quality.
(2). we provide high quality lcd panels for customers all over the world.
(3) .We have DBS, ISO9001 Certifications for our Panels.
(4) .Excellent service on before-sale, on-sale and after-sale.
Packaging & Delivery
Packaging Details: Safe & Professional packing or as requirement for the LCD Screen replacements.
Delivery Detail: 2-3 days after receipt of payment
Payment terms: We accept T/T, PayPal, Western Union and others.
G185XW01 V2 Characteristic
| Panel Model | G185XW01 V2 |
|---|---|
| Panel Brand | AUO |
| Descrition | a-Si TFT-LCD ,18.5 inch, 1366×768 |
| Panel Type | a-Si TFT-LCD |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 409.8×230.4 mm |
| Outline | 430.4×254.7×13.2 mm |
| Surface | Antiglare, Hard coating (3H) |
| Contrast Ratio | 1000:1 (Typ.) |
| Display Colors | 16.7M (6-bit + Hi-FRC) , CIE1931 68% |
| Response Time | 3.5/1.5 (Typ.)(Tr/Td) |
| Viewing Angle | 85/85/80/80 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | WLED Embedded (LED Driver) |
G185XW01 V2 Mechanical Features
| Dot Resolution | 1366(RGB)×768 (WXGA) |
|---|---|
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 84 PPI |
| Aspect Ratio | 16:9 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.100×0.300 mm (H×V) |
| Pixel Pitch | 0.300×0.300 mm (H×V) |
| Weight | 1.55Kgs (Max.) |
| Surface | Antiglare, Hard coating (3H) |
| Active Area | 409.8×230.4 mm (H×V) |
| Bezel Area | 413.4×234.0 mm (H×V) |
| Outline Dimension | 430.4×254.7 mm (H×V) |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| X139BLB01.0 | AUO | 1.39" | 400×400 |
| H381DLN01.0 | AUO | 3.8" | 1080×1200 |
| H497TLB01.4 | AUO | 5.0" | 720×1280 |
| H163QLN01.0 | AUO | 1.63" | 320×320 |
| H139BLN01.2 | AUO | 1.39" | 400×400 |
| H500TLB01.0 | AUO | 5.0" | 720×1280 |
| X546DLB01.0 | AUO | 5.5" | 1080×1920 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
