Product Details:
|
| Panel Brand: | Sharp | Panel Model: | LQ056A3CH01 |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 5.6 Inch |
| Resolution: | 320(RGB)×234 | Display Mode: | TN, Normally White, Transmissive |
| Highlight: | sharp lcd display panels,sharp lcd screen |
||
LQ056A3CH01 Sharp LCD Panel 5.6 inch LCM 320×234 300 100:1 Full color CCFL Analog
LQ056A3CH01 Specification
| Panel Brand : | SHARP |
| Panel Model : | LQ056A3CH01 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 5.6 inch |
| Resolution : | 320(RGB)×234 |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 114.2×83.5 mm |
| Outline : | 140×102.7 mm |
| Surface : | |
| Brightness : | 300 cd/m² (Typ.) |
| Contrast Ratio : | 100:1 (Min.) |
| Display Colors : | Full color |
| Response Time : | 30/50 (Typ.)(Tr/Td) |
| Viewing Angle : | 30/30/10/45 (Min.)(CR≥10) (L/R/U/D) |
| Lamp Type : | 1 pcs CCFL Without Driver |
| Signal Interface : | Analog RGB + Composite Video (NTSC) , 24 pins |
| Input Voltage : | 8.0/-5.0V (Typ.)(Typ.)(Vsh/Vsl) |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| LK315T3HC1K | SHARP | 31.5" | 1366×768 |
| LQ055T3SX04 | SHARP | 5.5" | 1080×1920 |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
| LQ156Z1JW01 | SHARP | 15.6" | 3200×1800 |
| LQ133T1JW14B | SHARP | 13.3" | 2560×1440 |
| Panel Size : | 5.6 inch |
| Dot Resolution : | 320(RGB)×234 |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 71 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.119×0.357 mm (H×V) |
| Pixel Pitch : | 0.357×0.357 mm (H×V) |
| Weight : | 220g (Max.) |
| Active Area : | 114.2×83.5 mm (H×V) |
| Bezel Area : | 120.0×89.4 mm (H×V) |
| Outline Dimension : | 140×102.7 mm (H×V) |
| Outline Depth : | 17.0 (Typ.) mm |
| Holes & Brackets : | Rear mounting holes (4-Ф2.2) |
| Landscape or Portrait : | Landscape type |
| Touch Panel : |
Without |
Our Advantages
Packaging & Shipping:
Delivery Information:
Our professional testing team will test the LCD panels pcs by pcs, to make sure the LCD screen sent out are with good quality.
Shipping Method:
By Express: FedEx, DHL, EMS, TNT, UPS,
By Logistics: By air
Shipping Time:
From Monday to Saturday 8:00am-17:30pm
Shipping Address:
If by T/T, shipping address as communicate.

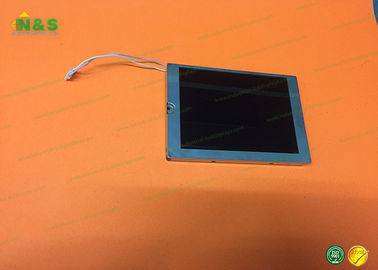

LQ056A3CH01 Picture
