Product Details:
|
| Panel Size :: | 23.0 Inch | Resolution :: | 1920(RGB)×1080 , FHD |
|---|---|---|---|
| Active Area :: | 509.76×286.74 Mm | Surface :: | Antiglare (Haze 25%), Hard Coating (3H) |
| Brightness :: | 250 Cd/m² (Typ.) | Contrast Ratio :: | 1000:1 (Typ.) |
| High Light: | samsung lcd screen,samsung lcd panel replacement |
||

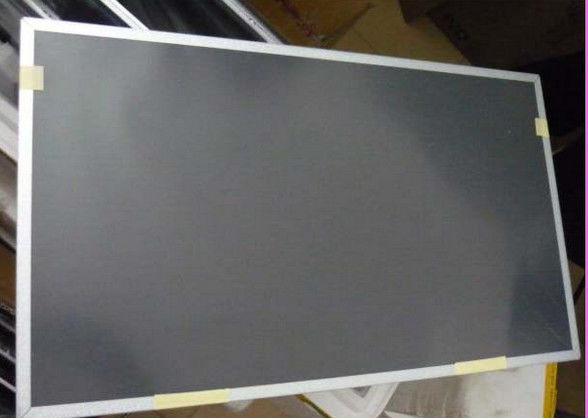

LTM230HT05 23.0 inch Samsung LCD Panel , Desktop Monitor digital lcd display
LTM230HT05 Information
| Panel Size : | 23.0 inch |
|---|---|
| Dot Resolution : | 1920(RGB)×1080 (FHD) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 95 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0885×0.2655 mm (H×V) |
| Pixel Pitch : | 0.2655×0.2655 mm (H×V) |
| Weight : | 2.20Kgs (Max.) |
| Surface : | Antiglare (Haze 25%), Hard coating (3H) |
| Active Area : | 509.76×286.74 mm (H×V) |
| Bezel Area : | 513.8×290.8 mm (H×V) |
| Outline Dimension : | 534×311.7 mm (H×V) |
| Outline Depth : | 8.87/11.8 (Typ./Max.) mm |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Packaging & Delivery
Packaging: Safety Package For all of our LCD Screen Panel Replacements.
Details: 1. Antistatic bag
2. Layers of cartons
3. Foam Box
4. Carton Box.
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LSM270HP04 | Samsung | 27.0" | 1920×1080 |
| LSI320HN01 | Samsung | 31.5" | 1920×1080 |
| LSC550HJ12-W | Samsung | 55" | 1920×1080 |
| LSC550FJ07-W | Samsung | 55" | 3840×2160 |
| LSC550FJ04-W | Samsung | 55" | 3840×2160 |
| LSC550FJ03-W | Samsung | 55" | 3840×2160 |
| LSC490HN03-W | Samsung | 49" | 1920×1080 |
| LSC650FJ10-W | Samsung | 65" | 3840×2160 |
Pls contact to us for more stock information: salespm@nselectronic.com.hk
Why Choose US:
1. Prompt reply within 12 hours.
2. Understand inquiry in any language.
3. Products with top quality.
4. Very competitive prices.
5. 6-year experience in industrial LCD Screen replacements.
6. Distributor of famous brands Panel: Samsung, LG, Sharp, AUO, TPO, Tianma, Mitsubishi and more.
7. Fabulous after-sale service.
LTM230HT05 Information
| Lamp Position : | Edge light type (Bottom side) | |||||
|---|---|---|---|---|---|---|
| Lamp Type : | WLED | |||||
| Lamp Amount : | 17S4P | |||||
| Lamp Shape : | 4 strings | |||||
| Lamp Life Time : | 30K(Min.) (Hours) | |||||
| Lamp Voltage : | 56.1/59.5V (Typ./Max.) | |||||
| Lamp Current : | 252/260mA (Typ./Max.) | |||||
| Interface Type : | Connector | |||||
| Interface Position : | ||||||
| Backlight Interface | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| YEONHO | 12507WR-06L | 1.25 mm | 6 pins | 1 pcs | BLE-6PINS-CCAACC | |
| Lamp Driver Board : | No | |||||
