Product Details:
|
| Panel Brand :: | SAMSUNG | Panel Model: | LT121S1-153 |
|---|---|---|---|
| Panel Type :: | A-Si TFT-LCD , LCM | Panel Size :: | 12.1 Inch |
| High Light: | samsung lcd panel replacement,samsung lcd display panel |
||

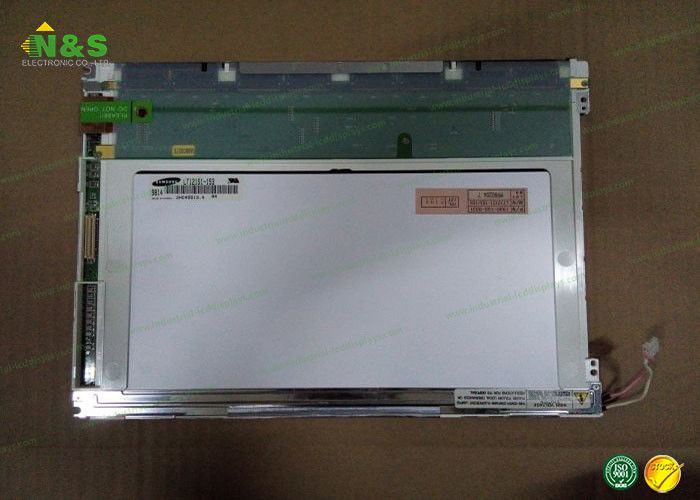

12.1 inch LT121S1-153 Samsung Normally White for Laptop panel 800×600
LT121S1-153 Information
| Panel Size : | 12.1 inch |
|---|---|
| Dot Resolution : | 800(RGB)×600 (SVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 82 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.1025×0.3075 mm (H×V) |
| Pixel Pitch : | 0.3075×0.3075 mm (H×V) |
| Weight : | 500g (Max.) |
| Surface : | Antiglare (Haze 25%), Hard coating (3H) |
| Active Area : | 246×184.5 mm (H×V) |
| Outline Dimension : | 275×200 mm (H×V) |
| Outline Depth : | 8.0 (Max.) mm |
| Holes & Brackets : | Face mounting holes (4 pcs) |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
LT121S1-153 Information
| Display Mode : | TN, Normally White, Transmissive |
|---|---|
| Brightness : | 70 cd/m² (Typ.) |
| Contrast Ratio : | 120 : 1 (Min.) (Transmissive) |
| Display Color : | 262K (6-bit) |
| Response Time : | 20/30 (Typ.)(Tr/Td) |
| Viewing Angle : | 45/45/10/30 (Min.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.303; Wy:0.317 |
| White Variation : | 2.00 (Max.)(13 points) |
| Sunlight Readable : | N |
LT121S1-153 Information
| Lamp Position : | Edge light type | |||||
|---|---|---|---|---|---|---|
| Lamp Type : | CCFL | |||||
| Lamp Amount : | 1 pcs | |||||
| Lamp Shape : | Straight | |||||
| Lamp Life Time : | 10K(Min.) (Hours) | |||||
| Lamp Voltage : | 548/593/624V (Min./Typ./Max.) | |||||
| Lamp Current : | 2.0/3.0/5.0mA (Min./Typ./Max.) | |||||
| Lamp Operating Frequency : | 20/50/60KHz (Min./Typ./Max.) | |||||
| Lamp Startup Voltage : | 900V (Max.)(Ta=0℃) | |||||
| Lamps Power Consumption : | 1.84/3.31W (Typ./Max.) | |||||
| Interface Type : | Connector | |||||
| Backlight Interface | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| JST | BHR-03VS-1 | 4.0 mm | 3 pins | 1 pcs | BLL-3PINS-HNL | |
| Lamp Driver Board : | No | |||||
