Product Details:
|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 5.6 Inch |
|---|---|---|---|
| Resolution: | 320(RGB)×234 | Display Mode: | TN, Normally White, Transmissive |
| Highlight: | sharp lcd display panels,sharp lcd screen |
||
LQ6AW31K SHARP 5.6 inch Normally White with 114.2×83.5 mm Active Area
Our Advantages
LQ6AW31K Specification
| Panel Size : | 5.6 inch |
| Dot Resolution : | 320(RGB)×234 |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 71 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.119×0.357 mm (H×V |
| Pixel Pitch : | 0.357×0.357 mm (H×V) |
| Weight : | 195g |
| Active Area : | 114.2×83.5 mm (H×V) |
| Outline Dimension : | 149.2×116.4 mm (H×V) |
| Outline Depth : | 23.0 (Typ.) mm |
| Landscape or Portrait : | Landscape type |
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 0 cd/m² |
| Viewing Direction : | 6 o'clock |
| Sunlight Readable | N |
Packaging & Delivery
Packaging: Safety Package For all of our LCD Screen Panel Replacements.
Details: 1. Antistatic bag
2. Layers of cartons
3. Foam Box
4. Carton Box.
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| LK315T3HC1K | SHARP | 31.5" | 1366×768 |
| LQ055T3SX04 | SHARP | 5.5" | 1080×1920 |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |

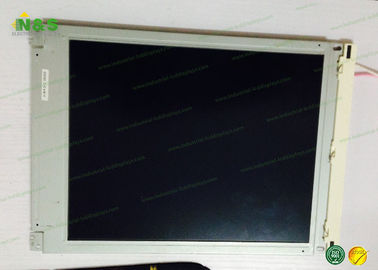

LQ6AW31K Picture
