Product Details:
|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 17.0 Inch |
|---|---|---|---|
| Resolution: | 1280(RGB)×768 , WXGA | Display Mode: | TN, Normally White, Transmissive |
| High Light: | sharp lcd display panels,sharp lcd flat screen |
||
Normally Black LQ170K1LW02 SHARP 17.0 inch LCM 1280×768 300 600:1 16.2M CCFL LVDS
Our Advantages
LQ170K1LW02 Product Information
| Panel Size : | 17.0 inch |
| Dot Resolution : | 1280(RGB)x768 (WXGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 87 PPI |
| Aspect Ratio : | 15:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.09625x0.28875 mm (HxV) |
| Pixel Pitch : | 0.28875x0.28875 mm (HxV) |
| Weight : | 1.75Kgs (Max.) |
| Surface : | Antiglare, Hard coating (3H) |
| Active Area : | 369.6x221.76 mm (HxV) |
| Bezel Area : | 374.6x226.8 mm (HxV) |
| Outline Dimension : | 413.8x259 mm (HxV) |
| Outline Depth : | 11.8/16.0 (Typ./Max.) mm |
| Holes & Brackets : | Face mounting holes (2-4.5, 2-4.5x6.0, 1-3.0, 1-3.0x4.5) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
| Display Mode : | P-MVA, Normally Black, Transmissive |
| Brightness : | 300 cd/m² (Typ.) |
| Contrast Ratio : | 600 : 1 (Typ.) (Transmissive) |
| Display Color : | 16.2M (6-bit + FRC) |
| Response Time : | 20 (Typ.)(Tr+Td) |
| Viewing Angle : | 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | Symmetry |
| White color Chromaticity : | Wx:0.313; Wy:0.329 |
| White Variation : | |
| Sunlight Readable : | N |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| LQ055T3SX04 | SHARP | 5.5" | 1080×1920 |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
| LQ156Z1JW01 | SHARP | 15.6" | 3200×1800 |
| LQ133T1JW14B | SHARP | 13.3" | 2560×1440 |
Our Promise for our LCD Panels:
You will get reply within 24 Hours and:
Year warranty
Day shipping
Return

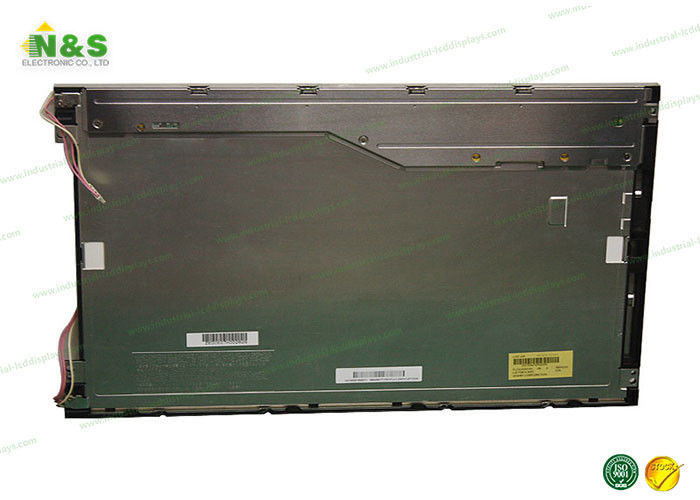

LQ170K1LW02 Picture
