Product Details:
|
| Panel Brand: | SHARP | Panel Model: | LQ050W1LA0A |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 5.0 Inch |
| Resolution: | 1024(RGB)×600 , WSVGA | Display Mode: | TN, Normally White, Transmissive |
| Highlight: | sharp lcd display panels,sharp lcd flat screen |
||
LQ050W1LA0A Sharp LCD Panel 5.0 inch Normally White with 109.1×63.9 mm Active Area
What is Our Advantage?
1. We are the professional supplier of the industrial LCD Screen Replacements, located in the biggest components center of the world.
2. We can provide the one-stop purchase service.
3. Our clients can grow their business by focusing on their sales, ware-housing and distribution while we take care of their China buying.
4. Client relationship and production management are the key factors that ensure successful China buying. Your account will be managed by our professional project managers.
5. Fast delivery.
6. Reasonable price.
LQ050W1LA0A Product Information
| Panel Brand : | SHARP | |
| Panel Model : | LQ050W1LA0A | |
| Panel Type : | a-Si TFT-LCD , LCM | |
| Panel Size : | 5.0 inch | |
| Resolution : |
|
|
| Display Mode : | TN, Normally White, Transmissive | |
| Active Area : | 109.1×63.9 mm | |
| Outline : | 119×76.3×5.6 mm | |
| Surface : | Antiglare, Hard coating (2H) | |
| Brightness : | 350 cd/m² (Typ.) | |
| Contrast Ratio : | 450:1 (Typ.) | |
| Display Colors : | 262K (6-bit) | |
| Response Time : | 30 (Typ.)(Tr+Td) | |
| Viewing Angle : |
|
|
| Lamp Type : | WLED Embedded (LED Driver) | |
| Signal Interface : | LVDS (1 ch, 6-bit) , 30 pins | |
| Input Voltage : | 3.3V (Typ.) |
FAQ
1. Q: Where can I get the price?
A:We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we'll regard your inquiry priority.
2. Q: How can I get a sample to check your quality?
A: After price confirmation, you can require for samples to check our quality.
3. Q: What about the lead time for mass production?
A: It depends on your order quantity and the season you place the order.
4. Q: What are your terms of payment?
A: We accept T/T, Western Union, MoneyGram, PayPal.
| Panel Size : | 5.0 inch | |
| Dot Resolution : | 1024(RGB)×600 (WSVGA) | |
| Pixel Configuration : | RGB Vertical Stripe | |
| Pixel Density : | 238 PPI | |
| Aspect Ratio : |
|
|
| Form Factor : | Flat Rectangle Display | |
| Dot Pitch : | 0.035×0.106 mm (H×V) | |
| Pixel Pitch : | 0.106×0.106 mm (H×V) | |
| Weight : |
|
|
| Surface : | Antiglare, Hard coating (2H) | |
| Active Area : | 109.1×63.9 mm (H×V) | |
| Bezel Area : | 111.5×66.3 mm (H×V) | |
| Outline Dimension : | 119×76.3 mm (H×V) | |
| Outline Depth : |
|
|
| Landscape or Portrait : | Landscape type | |
| Touch Panel : | Embeded (4-wire Resistive) |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
| LQ156Z1JW01 | SHARP | 15.6" | 3200×1800 |
| LQ133T1JW14B | SHARP | 13.3" | 2560×1440 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

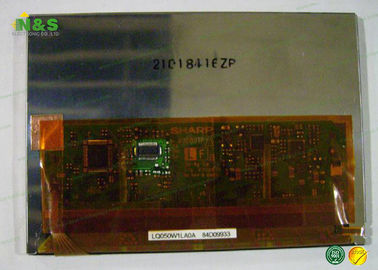

LQ050W1LA0A Picture
