Product Details:
|
| Panel Brand: | SHARP | Panel Model: | LQ048Y3DH01 |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 4.8 Inch |
| Resolution: | 800×480(RGB) , WVGA | Display Mode: | TN, Normally White, Transmissive |
| High Light: | sharp lcd screen,sharp lcd flat screen |
||
LQ048Y3DH01 Sharp LCD Panel 4.8 inch LCD screen for garmin nuvi 1860 GPS
LQ048Y3DH01 Specification
| Panel Brand : | SHARP | |
| Panel Model : | LQ048Y3DH01 | |
| Panel Type : | a-Si TFT-LCD , LCM | |
| Panel Size : | 4.8 inch | |
| Resolution : | 800×480(RGB) , WVGA | |
| Display Mode : |
|
|
| Active Area : | 104.4×62.64 mm | |
| Outline : | 116.5×77.9 mm | |
| Surface : | Antiglare, Hard coating (2H) | |
| Brightness : | 400 cd/m² (Typ.) | |
| Contrast Ratio : | 300:1 (Typ.) | |
| Display Colors : | 16.7M (6-bit + Hi-FRC) , CIE1931 47% | |
| Response Time : | 30/30 (Typ.)(Tr/Td) | |
| Viewing Angle : |
|
|
| Frequency : | 60Hz | |
| Lamp Type : | 7S2P WLED Without Driver | |
| Signal Interface : | Parallel RGB (1 ch, 8-bit) + SPI , 67 pins | |
| Input Voltage : | 1.8/2.85V (Typ.)(VDDIO/VCI) |
| Panel Size : | 4.8 inch | |
| Dot Resolution : | 800×480(RGB) (WVGA) | |
| Pixel Configuration : | RGB Horizontal Stripe | |
| Pixel Density : | 194 PPI | |
| Aspect Ratio : | 15:9 (H:V) | |
| Form Factor : | Flat Rectangle Display | |
| Dot Pitch : | 0.1305×0.0435 mm (H×V) | |
| Pixel Pitch : | 0.1305×0.1305 mm (H×V) | |
| Weight : |
|
|
| Surface : | Antiglare, Hard coating (2H) | |
| Active Area : | 104.4×62.64 mm (H×V) | |
| Bezel Area : | 108.68×66.46 mm (H×V) | |
| Outline Dimension : | 116.5×77.9 mm (H×V) | |
| Outline Depth : | 4.35±0.25 mm | |
| Landscape or Portrait : | Landscape type | |
| Touch Panel : | Embeded (4-wire Resistive) |
Our Advantage
As one of the biggest multiple electronic components & LCD panel distributors in China, we are expert in plenty of branded LCD panels, products include but not limited to:
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
| LQ156Z1JW01 | SHARP | 15.6" | 3200×1800 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
FAQ
Q1: What's price?
A1: We provide reasonable price and recommend suitable batteries to our customers.
Q2: What's delivery time?
A2: The delivery time is normally 1-3 working days after payment.
Q3: What's the payment?
A3: We accept T/T, Western Union, MoneyGram, Paypal
Q4: Can we visit your factory?
A4: Warmly welcome. Once we have your schedule, we will arrange professional sales team to follow up your case.

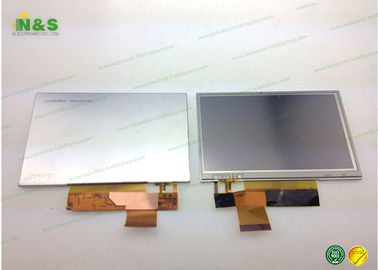

LQ048Y3DH01 Picture
