Product Details:
|
| Panel Brand: | SAMSUNG | Panel Size: | 17.0 Inch |
|---|---|---|---|
| Display Mode: | TN, Normally White, Transmissive | Brightness: | 250 Cd/m² (Typ.) |
| Outline Depth: | 17.0±0.5 Mm | Pixel Density: | 0.088×0.264 Mm (H×V) |
| Form Factor: | Flat Rectangle Display | Dot Resolution: | 1280(RGB)×1024 , SXGA |
| High Light: | samsung lcd panel replacement,samsung lcd display panel |
||

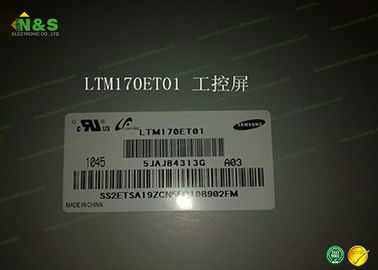

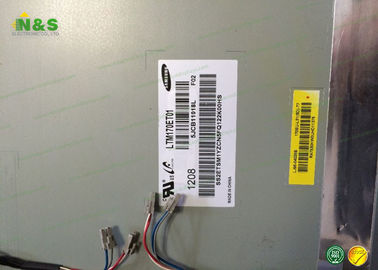

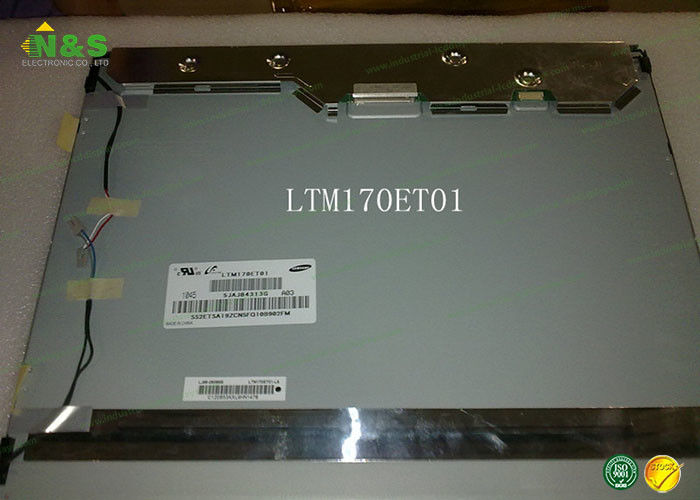

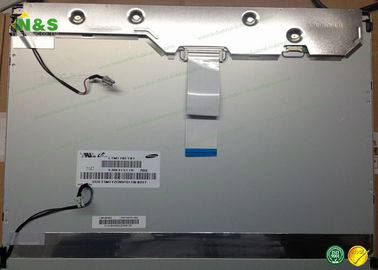

High brightness 1280*1024 Samsung LCD Panel LTM170ET01 with 17.0 inch
Advantages of N&S For the TFT LCD Screen:
Wholesale Price: We are the agency & professional sourcing buyer for the various branded LCD screens.
Fast delivery: We own the stock for the EOL & hard-to-find LCD screen replacements.
High Quality: Each LCD Screen will be tested pcs by pcs before shipments.
Good service: Professional international trade sales team & LCD panels testing team for 6 years.
One year international warranty.
Product details:
Panel Size : 17.0 inch
Dot Resolution : 1280(RGB)×1024 (SXGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 96 PPI
Aspect Ratio : 5:4 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.088×0.264 mm (H×V)
Pixel Pitch : 0.264×0.264 mm (H×V)
Weight : 2.00Kgs (Max.)
Active Area : 337.92×270.336 mm (H×V)
Bezel Area : 341.6×274.0 mm (H×V)
Outline Dimension : 358.5×296.5 mm (H×V)
Outline Depth : 17.0±0.5 mm
Holes & Brackets : Side mounting holes (4-M3) on left, right bezel
Landscape or Portrait : Landscape type
Touch Panel : Without
| Panel Brand : | SAMSUNG |
| Panel Model : | LTM170ET01 |
| Panel Type : | a-Si TFT-LCD , Panel |
| Panel Size : | 17.0 inch |
| Resolution : | 1280(RGB)×1024 , SXGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 337.92×270.336 mm |
| Outline : | 358.5×296.5×17.5 mm |
| Brightness : | 250 cd/m² (Typ.) |
| Contrast Ratio : | 1000:1 (Min.) |
| Display Colors : | 16.7M (6-bit + Hi-FRC) , CIE1931 72% |
| Response Time : | 5 (Typ.)(Tr+Td) |
| Viewing Angle : | 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 2 pcs CCFL Without Driver |
| Signal Interface : | LVDS (2 ch, 8-bit) , 30 pins |
| Input Voltage : | 5.0V (Typ.) |
Optical Features
Display Mode : TN, Normally White, Transmissive
Brightness : 250 cd/m² (Typ.)
Contrast Ratio : 1000 : 1 (Min.) (Transmissive)
Display Color : 16.7M (6-bit + Hi-FRC)
Color Gamut : 72% NTSC (CIE1931)
Response Time : 5 (Typ.)(Tr+Td)
Viewing Angle : 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D)
White color Chromaticity : Wx:0.313; Wy:0.329
White Variation : 1.33 (Max.)(9 points)
SAMSUNG LTM170ET01 Backlight System
Lamp Position : Edge light type (Top and Bottom)
Lamp Type : CCFL
Lamp Amount : 2 pcs
Lamp Shape : Straight
Lamp Life Time : 50K(Min.) (Hours)
Lamp Voltage : 580V (Typ.)
Lamp Current : 3.0/8.0/8.5mA (Min./Typ./Max.)
Lamp Operating Frequency : 40/60KHz (Min./Max.)
Lamp Startup Voltage : 1320/1500V (Max.)(Ta=+25/0℃)
Interface Type : Connector

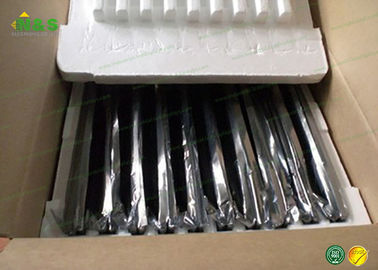

Delivery Information:
Our professional testing team will test the LCD panels pcs by pcs, to make sure the LCD screen sent out are with good quality.
Shipping Method:
By Express: FedEx, DHL, EMS, TNT, UPS,
By Logistics: By air
Shipping Time:
From Monday to Saturday 8:00am-17:30pm
Shipping Address:
If by T/T, shipping address as communicate
Why Choose our company?
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| AMS499QP07 | Samsung | 5.0" | 1080×1920 |
| AMS499QP01 | Samsung | 5.0" | 1080×1920 |
| AMS568AT01 | Samsung | 5.7" | 1440×2560 |
| AMS840CS04 | Samsung | 8.4" | 1600×2560 |
| AMS520BQ04-0 | Samsung | 5.2" | 1080×1920 |
| AMS309PW01-0 | Samsung | 3.1" | 720×720 |
| AMS465GS45 | Samsung | 4.7" | 720×1280 |
| AMS477GV07 | Samsung | 4.8" | 720×1280 |
| AMS429QC12 | Samsung | 4.3" | 540×960 |
| AMS465GS53 | Samsung | 4.7" | 720×1280 |
| AMS470GS16-1 | Samsung | 4.7" | 720×1280 |
| AMS367PE10 | Samsung | 3.7" | 480×800 |
| AMS397GE61-1 | Samsung | 4.0" | 480×800 |
| AMS427GL41-0 | Samsung | 4.3" | 480×800 |
