Product Details:
|
| Response Time: | 5/20 (Typ.)(Tr/Td) | Panel Size: | 15.0 Inch |
|---|---|---|---|
| Contrast Ratio: | 300:1 (Typ.) | Brightness: | 250 Cd/m² (Typ.) |
| Pixel Density: | 85 PPI | Dot Pitch: | 0.099×0.297 Mm (H×V) |
| Dot Resolution: | 1024(RGB)×768 , XGA | Form Factor: | Flat Rectangle Display |
| High Light: | samsung lcd screen,samsung lcd display panel |
||
250 cd / m² samsung lcd monitor , 1024*768 industrial LCD panel
TFT LCD Module series:
1. Our standard TFT LCD module size:
1.5", 2.0", 2.2", 2.5", 3.0", 3.5", 4.0", 4.2", 4.3", 4.7", 5.0", 5.5", 5.7", 6.0", 6.4", 7.0", 8.0", 10.1", 10.4", 12.1", etc.
2. Our TFT LCD module brands:
NEC, SHARP, AUO, SAMSUNG, LG, TIANMA, HITACHI, KOE etc.
3. Transflective / sun readable TFT LCD.
4. We are pretty specialize in the EOL & Hard-to-find LCD screen panel.
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LSC550FJ03-W | Samsung | 55" | 3840×2160 |
| LSC490HN03-W | Samsung | 49" | 1920×1080 |
| LSC650FJ10-W | Samsung | 65" | 3840×2160 |
| LSC490HN04-W | Samsung | 49" | 1920×1080 |
| LSC400HM15-W | Samsung | 40" | 1920×1080 |
| LSM315HP02-M01 | Samsung | 31.5" | 1920×1080 |
Pls contact to us for more stock information: salespm@nselectronic.com.hk
Mechanical Features
| Panel Size : | 15.0 inch |
| Dot Resolution : | 1024(RGB)×768 (XGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 85 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.099×0.297 mm (H×V) |
| Pixel Pitch : | 0.297×0.297 mm (H×V) |
| Weight : | 1.35Kgs (Max.) |
| Surface : | Antiglare (Haze 25%), Hard coating (3H) |
| Active Area : | 304.1×228.1 mm (H×V) |
| Bezel Area : | 307.2×231.1 mm (H×V) |
| Outline Dimension : | 331.6×254.8 mm (H×V) |
| Outline Depth : | 12.5±0.5 mm |
| Holes & Brackets : | Face mounting holes (2-Φ3.2, 2-R1.6) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Optical Features
Display Mode : TN, Normally White, Transmissive
Brightness : 250 cd/m² (Typ.)
Contrast Ratio : 300 : 1 (Typ.) (Transmissive)
Display Color : 16.2M (6-bit + FRC)
Response Time : 5/20 (Typ.)(Tr/Td)
Viewing Angle : 70/70/55/65 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction : 6 o'clock
General Features
Panel Brand : SAMSUNG

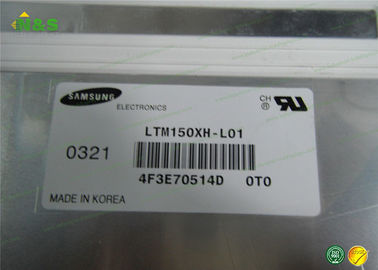

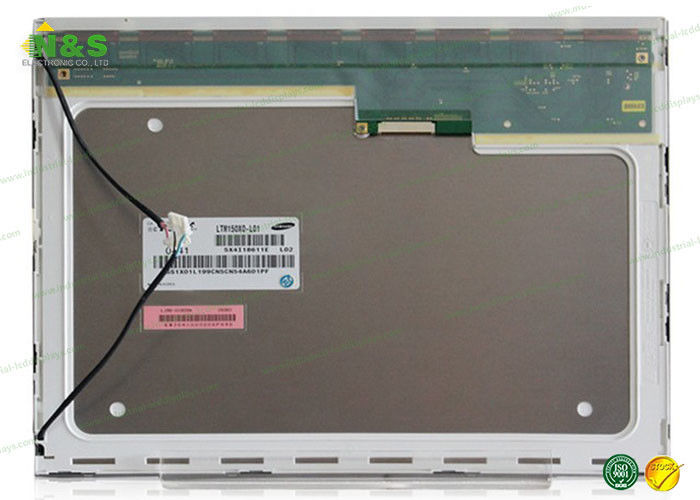

Panel Model : LTM150XH-L01
Panel Type : a-Si TFT-LCD , Panel
Panel Size : 15.0 inch
Resolution : 1024(RGB)×768 , XGA
Display Mode : TN, Normally White, Transmissive
Active Area : 304.1×228.1 mm
Outline : 331.6×254.8×13 mm
Surface : Antiglare (Haze 25%), Hard coating (3H)
Brightness : 250 cd/m² (Typ.)
Contrast Ratio : 300:1 (Typ.)
Display Colors : 16.2M (6-bit + FRC)
Response Time : 5/20 (Typ.)(Tr/Td)
Viewing Angle : 70/70/55/65 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Lamp Type : 4 pcs CCFL Without Driver
Signal Interface : LVDS (1 ch, 8-bit) , 20 pins
Input Voltage : 3.3V (Typ.)
Advantages of N&S For the TFT LCD Screen:
Wholesale Price: We are the agency & professional sourcing buyer for the various branded LCD screens.
Fast delivery: We own the stock for the EOL & hard-to-find LCD screen replacements.
High Quality: Each LCD Screen will be tested pcs by pcs before shipments.
Good service: Professional international trade sales team & LCD panels testing team for 6 years.
One year international warranty.
[Refund & Replacement]
You will receive a 180-360 days form, fit, and function of part warranty to make sure you receive exactly what you ordered.
If you have any other questions for our LCD panels please feel free to contact us.
