Product Details:
|
| Brightness: | 110cd/m² (Typ.) | Lamp Type: | 5S1P WLED |
|---|---|---|---|
| Signal Interface: | Parallel RGB (1 Ch, 6-bit) , 39 Pins | Resolution: | 320(RGB)×320 |
| Display Mode: | TN, Normally White, Transflective | Panel Size: | 3.0 Inch |
| High Light: | sharp lcd display panels,sharp lcd screen |
||

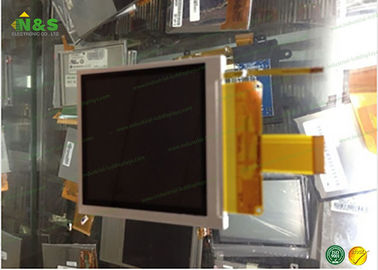

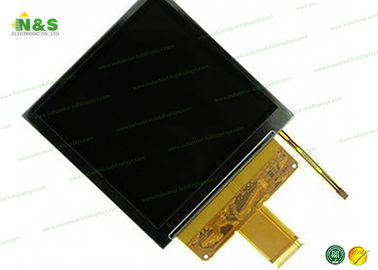

Original 3.0 inch LQ030B7DD01 for 320*320 without touch Sharp LCD Panel
Advantages of N&S For the TFT LCD Screen:
SHARP LQ030B7DD01 Mechanical Features
Panel Size : 3.0 inch
Dot Resolution : 320(RGB)×320
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 151 PPI
Aspect Ratio : 1:1 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.056×0.168 mm (H×V)
Pixel Pitch : 0.168×0.168 mm (H×V)
Weight : 37g (Typ.)
Surface : Clear, Hard coating
Active Area : 53.76×53.76 mm (H×V)
Outline Dimension : 66.6×68.5 mm (H×V)
Outline Depth : 3.6 (Typ.) mm
Landscape or Portrait : Landscape type
Touch Panel : Without
SHARP LQ030B7DD01 Optical Features
| Display Mode : | TN, Normally White, Transflective |
| Brightness : | 110 cd/m² (Typ.) |
| Contrast Ratio : | 70 : 1 (Typ.) (Transmissive) |
| Contrast Ratio : | 5:1 (Typ.) (Reflective) |
| Display Color : | 262K (6-bit) |
| Response Time : | 30/50 (Typ.)(Tr/Td) |
| Viewing Angle : | 40/40/40/50 (Typ.)(CR≥2) (L/R/U/D) |
| Viewing Direction : | 1 o'clock |
| Reflectance Ratio : | 4/6% (Min./Typ.) |
| Sunlight Readable : | Sunlight Readable |
more details.
Panel Brand : SHARP
Panel Model : LQ030B7DD01
Panel Type : a-Si TFT-LCD , Panel
Panel Size : 3.0 inch
Resolution : 320(RGB)×320
Display Mode : TN, Normally White, Transflective
Active Area : 53.76×53.76 mm
Outline : 66.6×68.5 mm
Surface : Clear, Hard coating
Brightness : 110 cd/m² (Typ.)
Contrast Ratio : 70:1 (Typ.)(Transmissive) 5:1 (Typ.)(Reflective)
Display Colors : 262K (6-bit)
Response Time : 30/50 (Typ.)(Tr/Td)
Viewing Angle : 40/40/40/50 (Typ.)(CR≥2) (L/R/U/D)
Lamp Type : 5S1P WLED [8S6P: 8 Serial, 6 Parallel]
Signal Interface : Parallel RGB (1 ch, 6-bit) , 39 pins
Input Voltage : 5.0/3.3/15/-10V (Typ.)(VSHA/VSHD/VDD/VEE)
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| LM016LC1S07 | SHARP | 1.9" | 96×128 |
| LS050K3SX06A | SHARP | 5.0" | 720×1280 |
| LK460D3HA10 | SHARP | 46" | 1920×1080 |
| LK315T3HB874 | SHARP | 31.5" | 1366×768 |
| LK315T3HB873 | SHARP | 31.5" | 1366×768 |
| LQ0DZC0156 | SHARP | 40" | 1920×1080 |
| LX080M1BB01 | SHARP | 8.0" | 1920×1200 |
| LS050K3SX09 | SHARP | 5.0" | 720×1280 |
| Lamp Position : | Edge light type |
| Lamp Type : | WLED |
| Lamp Amount : | 5S1P |
| Lamp Shape : | 1 string |
| Lamp Voltage : | 18.5V (Typ.) |
| Lamp Current : | 18mA (Typ.) |
| Lamps Power Consumption : | 333mW (Typ.) |
| Interface Type : | FPC |
