Product Details:
|
| Display Colors: | 262K (6-bit) | Brightness: | 125cd/m² (Typ.) |
|---|---|---|---|
| Contrast Ratio: | 60:1 (Typ.)(Transmissive) | Lamp Type: | 4S1P WLED |
| Signal Interface: | CPU , 35 Pins | Resolution: | 176(RGB)×220 , QCIF+ |
| High Light: | sharp lcd screen,sharp lcd flat screen |
||

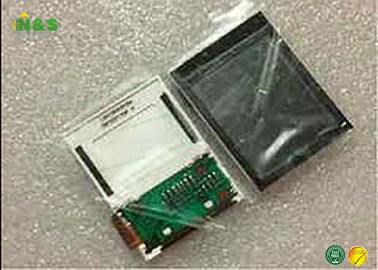

Original 2.2 inch LQ022B8UD05 sharp lcd screen replacement 176*220 without touch
General Features
Panel Brand : SHARP
Panel Model : LQ022B8UD05
Panel Type : a-Si TFT-LCD , Panel
Panel Size : 2.2 inch
Resolution : 176(RGB)×220 , QCIF+
Display Mode : TN, Normally White, Transflective
Active Area : 34.848×43.56 mm
Outline : 42.1×56.6 mm
Surface :
Brightness : 125 cd/m² (Typ.)
Contrast Ratio : 60:1 (Typ.)(Transmissive)
Display Colors : 262K (6-bit)
Response Time : 18/45 (Typ.)(Tr/Td)
Viewing Angle : 30/30/30/30 (Typ.)(CR＞5) (L/R/U/D)
Lamp Type : 4S1P WLED
Signal Interface : CPU , 35 pins
Input Voltage : 3.0/3.0V (Typ.)(VEE/VDD)
Mechanical Features
| Panel Size : | 2.2 inch |
| Dot Resolution : | 176(RGB)×220 (QCIF+) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 128 PPI |
| Aspect Ratio : | 4:5 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.066×0.198 mm (H×V) |
| Pixel Pitch : | 0.198×0.198 mm (H×V) |
| Weight : | 12.1g (Typ.) |
| Active Area : | 34.848×43.56 mm (H×V) |
| Outline Dimension : | 42.1×56.6 mm (H×V) |
| Outline Depth : | 4.2 (Typ.) mm |
| Landscape or Portrait : | Portrait type |
| Touch Panel : | Without |
Optical Features
Display Mode : TN, Normally White, Transflective
Brightness : 125 cd/m² (Typ.)
Contrast Ratio : 60 : 1 (Typ.) (Transmissive)
Display Color : 262K (6-bit)
Response Time : 18/45 (Typ.)(Tr/Td)
Viewing Angle : 30/30/30/30 (Typ.)(CR＞5) (L/R/U/D)
Viewing Direction : 12 o'clock
White color Chromaticity : Wx:0.310; Wy:0.350
Reflectance Ratio : 11% (Typ.)
Sunlight Readable : Sunlight Readable
Our Services
1. Quick and accurate reply with best service attidue to our business
2. Pofessional advise
3. Quick PI confirmation
4. Close production follow up and production process feedback
5. Safe package
6. Get feekback from your side when items arrived,
7. 24 months warranty for items
Advantages of N&S For the TFT LCD Screen:
Questions & Answers:
Q1: How can you trust us?
- We are a professional team for the LCD panel international trade already for 6 years. We own the more professional & more competitive sourcing line & agency for the LCD Screen panels.
Q2: When can I get the update price?
- Within 24 hours after we get your inquiry.
Q3: What is your product capacity per day?
- 500-1000 pcs/day. We test each pcs LCD panels before shipment.
Q4: What is the payment term?
- T/T, Western Union, MoneyGram, PayPal.
Q6: Do you offer after-sale service?
- Yes, we do. We have strict QC system to make sure within our guarantee period(12 months), please contact us ASAP if there is any question, we will try our best to resolve it.
Q7: Which brands' LCD panel replacements could we handle?
- Our LCD screen panels contained but not limited to AUO, Chimei, Hitachi, Innolux, KOE, Tianma, LG, NEC, Samsung, Sharp, Optrex and more brand for the industrial TFT LCD module.
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| LQ055T3SX04 | SHARP | 5.5" | 1080×1920 |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
