Product Details:
|
| Panel Size: | 10.4 Inch | Resolution: | 640(RGB)×480 , VGA |
|---|---|---|---|
| Display Mode: | STN, Normally Black, Transmissive | Active Area: | 211.175×158.375 Mm |
| Display Colors: | Color | Response Time: | 220/80 (Typ.)(Tr/Td) |
| Lamp Type: | 1 Pcs CCFL | Signal Interface: | Parallel Data (8-bit) , 31 Pins |
| Highlight: | sharp lcd display panels,sharp lcd screen |
||
Sharp LCD Panel LM64C35P 10.4 inch 211.175×158.375 mm Active Area 242.5×179.4 mm Outline
SHARP LM64C35P General Features
| Panel Brand : | SHARP |
| Panel Model : | LM64C35P |
| Panel Type : | CSTN-LCD , Panel |
| Panel Size : | 10.4 inch |
| Resolution : | 640(RGB)×480 , VGA |
| Display Mode : | STN, Normally Black, Transmissive |
| Active Area : | 211.175×158.375 mm |
| Outline : | 242.5×179.4 mm |
| Contrast Ratio : | 30:1 (Typ.) |
| Display Colors : | Color |
| Response Time : | 220/80 (Typ.)(Tr/Td) |
| Lamp Type : | 1 pcs CCFL |
| Signal Interface : | Parallel Data (8-bit) , 31 pins |
| Input Voltage : | 5.0V (Typ.) |
Packaging & Delivery
Packaging: Safety Package For all of our LCD Screen Panel Replacements.
Details: 1. Plastic Trays Inside
2. Layers of cartons
3. Fragile Sign on top.
4. Can be customized.
What is Our Advantage?
1. We are the professional supplier of the industrial LCD Screen Replacements,located in the biggest components center of the world.
2. We can provide the one-stop purchase service.
3. Our clients can grow their business by focusing on their sales, ware-housing and distribution while we take care of their China buying.
4. Client relationship and production management are the key factors that ensure successful China buying. Your account will be managed by our professional project managers.
5. Fast delivery.
6. Reasonable price.
SHARP LM64C35P Mechanical Features
| Panel Size : | 10.4 inch |
| Dot Resolution : | 640(RGB)×480 (VGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 76 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.110×0.330 mm (H×V) |
| Pixel Pitch : | 0.330×0.330 mm (H×V) |
| Weight : | 500g (Typ.) |
| Active Area : | 211.175×158.375 mm (H×V) |
| Bezel Area : | 215.2×162.4 mm (H×V) |
| Outline Dimension : | 242.5×179.4 mm (H×V) |
| Outline Depth : | 11.5 (Max.) mm |
| Holes & Brackets : | Face mounting holes |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Below are our other LCD panels stock for your easy reference:
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |

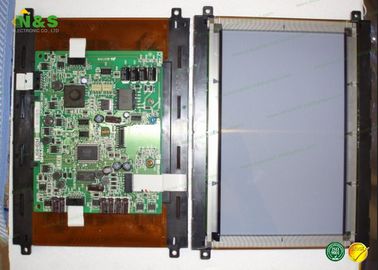

Details Pictures for Sharp LCD Panel LM64C35P
