Product Details:
|
| Resolution: | 480(RGB)×272 , WQVGA | Display Mode: | ASV, Normally Black, Transmissive |
|---|---|---|---|
| Active Area: | 95.04×53.856 Mm | Outline: | 105.5×67.2 Mm |
| Contrast Ratio: | 400:1 (Typ.) | Display Colors: | 16.7M (8-bit) |
| Response Time: | 30/30 (Typ.)(Tr/Td) | Viewing Angle: | 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) |
| High Light: | sharp lcd display panels,sharp lcd screen |
||
Sharp LQ043T3DX02 industrial lcd touch screen monitor 4.3 inch
SHARP LQ043T3DX02 General Features
| Panel Brand : | SHARP |
| Panel Model : | LQ043T3DX02 |
| Panel Type : | a-Si TFT-LCD , Panel |
| Panel Size : | 4.3 inch |
| Resolution : | 480(RGB)×272 , WQVGA |
| Display Mode : | ASV, Normally Black, Transmissive |
| Active Area : | 95.04×53.856 mm |
| Outline : | 105.5×67.2 mm |
| Surface : | Clear, Hard coating |
| Brightness : | 165 cd/m² (Typ.) |
| Contrast Ratio : | 400:1 (Typ.) |
| Display Colors : | 16.7M (8-bit) |
| Response Time : | 30/30 (Typ.)(Tr/Td) |
| Viewing Angle : | 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 7S1P WLED |
| Signal Interface : | Parallel RGB (1 ch, 8-bit) , 40 pins |
| Input Voltage : | 2.5/5.0V (Typ.)(VCC/AVDD) |
Packaging & Delivery
Packaging: Safety Package For all of our LCD Screen Panel Replacements.
Details: 1. Plastic Trays Inside
2. Layers of cartons
3. Fragile Sign on top.
4. Can be customized.
SHARP LQ043T3DX02 Mechanical Features
| Panel Size : | 4.3 inch |
| Dot Resolution : | 480(RGB)×272 (WQVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 128 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.066×0.198 mm (H×V) |
| Pixel Pitch : | 0.198×0.198 mm (H×V) |
| Weight : | 50g (Typ.) |
| Surface : | Clear, Hard coating |
| Active Area : | 95.04×53.856 mm (H×V) |
| Bezel Area : | 98.7×57.5 mm (H×V) |
| Outline Dimension : | 105.5×67.2 mm (H×V) |
| Outline Depth : | 3.95 (Typ.) mm |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
SHARP LQ043T3DX02 Backlight System
Lamp Position : Edge light type
Lamp Type : WLED
Lamp Amount : 7S1P
Lamp Shape : 1 string
Lamp Voltage : 29.4V (Max.)
Lamp Current : 18/20mA (Typ./Max.)
Interface Type : FPC
Lamp Driver Board : No

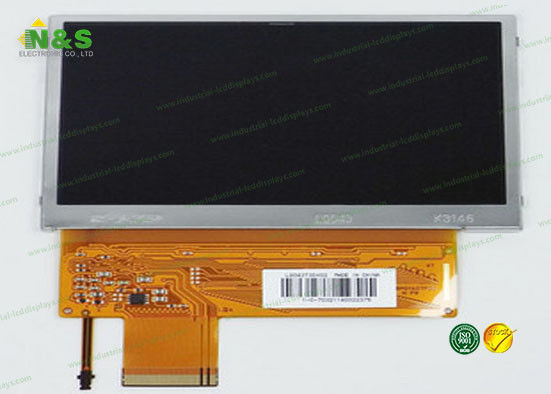

Details Pictures for Sharp LCD Panel LQ043T3DX02
