Product Details:
|
| Panel Model: | LTV350QV-F03 | Resolution: | 320(RGB)×240 , QVGA |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD , Panel | Panel Size: | 3.5 Inch |
| Active Area: | 70.08×52.56 Mm | ||
| High Light: | samsung lcd screen,samsung lcd panel replacement |
||

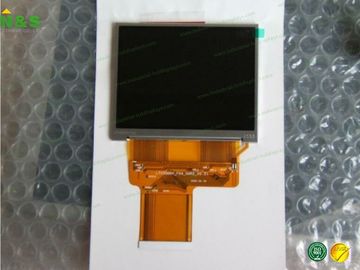

Hard Coating 3.5 Inch Samsung LCD Panel LTV350QV-F03 Landscape Type VGA Panel
Quick Details:
<
1. Panel Size : 3.5 inch
2. Dot Resolution : 320(RGB)×240 (QVGA)
3. Pixel Density : 115 PPI
4. Aspect Ratio : 4:3 (H:V)
5. Form Factor : Flat Rectangle Display
6. Dot Pitch : 0.073×0.219 mm (H×V)
7. Pixel Pitch : 0.219×0.219 mm (H×V)
8. Active Area : 70.08×52.56 mm (H×V)
9. Landscape or Portrait : Landscape type
Our Product Features and Advantages:
<
Industrial standard- and semi-custom panels also available as complete display-kit solution including Display Solutions developed high quality and long-term available TFT LCD panel or Touch Screen.
We are professional Industrial Panel Distributor of the following manufacturers: AUO, LG, Innolux, Sharp, NEC, BOE and More.
<<
Technical parameters for Samsung LTV350QV-F03:
<<
Display Mode : TN, Normally White, TMR
Display Color : 16.7M (8-bit)
Sunlight Readable : Sunlight Readable
Samsung LTV350QV-F03 Packing Form:
Amount per Box : 25 pcs
Box Gross Weight : 7 Kgs
| Panel Model | Size | Resolution | cd/m2 | C/R | Backlight | Color | Interface |
| LTV350QV-F14 | 3.5" | 320×240 | WLED | 16.7M | |||
| LTV350QV-F0L | 3.5" | 320×240 | 350 | 300:1 | WLED | 16.7M | TTL |
| LTV350QV-F0K | 3.5" | 320×240 | 280 | 400:1 | WLED | 16.7M | Serial RGB |
| LTV350QV-F0J | 3.5" | 320×240 | WLED | 16.7M | TTL | ||
| LTV350QV-F0H | 3.5" | 320×240 | WLED | 16.7M | TTL | ||
| LTV350QV-F0G | 3.5" | 320×240 | 300 | 300:1 | WLED | 16.7M | TTL |
| LTV350QV-F0F | 3.5" | 320×240 | 350 | 400:1 | WLED | 16.7M | TTL |
| LTV350QV-F0E | 3.5" | 320×240 | 320 | 300:1 | WLED | 16.7M | TTL |
| LTV350QV-F0C | 3.5" | 320×240 | 320 | 300:1 | WLED | 16.7M | TTL |
| LTV350QV-F0A | 3.5" | 320×240 | 200 | 300:1 | WLED | 16.7M | TTL |
| LTV350QV-F09 | 3.5" | 320×240 | 320 | 300:1 | WLED | 16.7M | TTL |
| LTV350QV-F08 | 3.5" | 320×240 | 16.7M | ||||
| LTV350QV-F07 | 3.5" | 320×240 | 350 | 500:1 | WLED | 16.7M | TTL |
| LTV350QV-F06 | 3.5" | 320×240 | 200 | 300:1 | WLED | 16.7M | TTL |
| LTV350QV-F05 | 3.5" | 320×240 | 200 | 300:1 | WLED | 16.7M | TTL |
| LTV350QV-F04 | 3.5" | 320×240 | 250 | 300:1 | WLED | 16.7M | TTL |
| LTV350QV-F03 | 3.5" | 320×240 | 16.7M | ||||
| LTV350QV-F02 | 3.5" | 320×240 | 16.7M | ||||
| LTV350QV-F01 | 3.5" | 320×240 | 16.7M |
