Product Details:
|
| Panel Model: | LQ057Q3DC12 | Panel Type: | A-Si TFT-LCD , Panel |
|---|---|---|---|
| Panel Size: | 5.7 Inch | Resolution: | 320(RGB)×240 , QVGA |
| Display Modes: | TN, Normally White, Transmissive | Contrast Ratio: | 350:1 (Typ.) |
| Brightness: | :500 Cd/m² (Typ.) | ||
| High Light: | sharp lcd display panels,sharp lcd flat screen |
||
Sharp LCD Panel , 5.7 inch LCD LQ057Q3DC12 115.2×86.4 mm LCD Display Panel
Descriptions for SHARP LQ057Q3DC12 LCD:
<
| Panel Brand : | SHARP |
| Panel Model : | LQ057Q3DC12 |
| Panel Type : | a-Si TFT-LCD , Panel |
| Panel Size : | 5.7 inch |
| Resolution : | 320(RGB)×240 , QVGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 115.2×86.4 mm |
| Outline : | 144×104.6×13.5 mm |
| Surface : | Hard coating (3H) |
| Brightness : | 500 cd/m² (Typ.) |
| Contrast Ratio : | 350:1 (Typ.) |
| Display Colors : | 262K (6-bit) |
| Response Time : | 8/21 (Typ.)(Tr/Td) |
| Viewing Angle : | 65/65/65/40 (Typ.)(CR≥5) (L/R/U/D) |
| Lamp Type : | 1 pcs CCFL Without Driver |
| Signal Interface : | Parallel RGB (1 ch, 6-bit) , 33 pins |
| Viewing Direction : | 12 o'clock |
| White color Chromaticity : | Wx:0.313; Wy:0.329 |
Our Product Advantages:
1. Signal Category : TTL
2. Signal Class : Parallel RGB (1 ch, 6-bit)
3. Input Voltage for Panel : 3.3V (Typ.)(VCC)
4. Input Current for Panel : 130mA (Typ.)(ICC)
5. Voltage for Display Signals : 0≤VIL≤0.3VCC; 0.7VCC≤VIH≤5.5V
6. Interface Type : Connector
Industrial standard- and semi-custom panels also available as complete display-kit solution including Display Solutions developed high quality and long-term available TFT LCD panel or Touch Screen.
We are professional Industrial Panel Distributor of the following manufacturers: AUO, LG, Innolux, Sharp, NEC, BOE and More.
SHARP LQ070Y5DR04 Backlight System :
1. Lamp Position : Edge light type
2. Lamp Type : CCFL
3. Lamp Amount : 1 pcs
4. Lamp Shape : U shape
5. Lamp Life Time : 10K(Min.) (Hours)
6. Lamp Voltage : 840±90V
7. Lamp Current : 6.0±0.5mA
8. Lamp Operating Frequency : 40/100KHz (Min./Max.)
9. Lamp Startup Voltage : 3200/3250V (Max.)(Ta=+25/-30℃)
10. Lamps Power Consumption : 5.0W (Typ.)
11. Interface Type : Connector

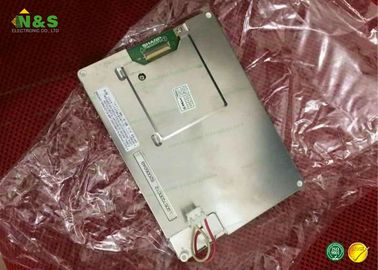

Details Picture for SHARP LQ057Q3DC12 LCD:
