Product Details:
|
| Panel Model: | C065GW03 V1 | Panel Brand: | AUO |
|---|---|---|---|
| Size: | 6.5 Inch | Panel Type: | A-Si TFT-LCD |
| Display Mode: | TN, Normally White | Active Area: | 143.4×79.326 Mm |
| Outline: | 155×90.83 Mm | Display Colors: | 262K |
| High Light: | car lcd display,vehicle lcd display |
||

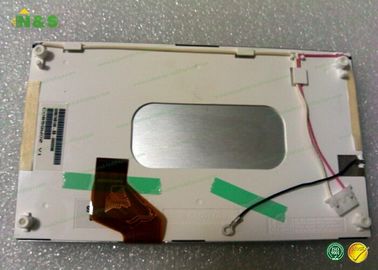

New and original C065GW03 V1 AUO 6.5 inch LCM 400×240 550 400:1 for Automotive Display
C065GW03 V1 Information
| Panel Model | C065GW03 V1 |
|---|---|
| Panel Brand | AUO |
| Descrition | a-Si TFT-LCD ,6.5 inch, 400×240 |
| Panel Type | a-Si TFT-LCD |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 143.4×79.326 mm |
| Outline | 155×90.83 mm |
| Surface | Antiglare, Hard coating (3H) |
| Contrast Ratio | 400:1 (Typ.) |
| Display Colors | 262K |
| Response Time | 15/20 (Typ.)(Tr/Td) |
| Viewing Angle | 60/60/45/60 (Typ.)(CR≥10) (L/R/U/D) |
| Lamp Type | 1 pcs CCFL Without Driver |
| Signal Interface | Parallel RGB (1 ch, 6-bit) , 55 pins |
| Input Voltage | 3.3/9.8/15/-7V (Typ.)(VCC/AVDD/VGH/VGL) |
| Panel Model | C065GW03 V1 |
|---|---|
| Panel Brand | AUO |
| Descrition | a-Si TFT-LCD ,6.5 inch, 400×240 |
| Panel Type | a-Si TFT-LCD |
| Model Alias | C065GW03 V.1 |
| Operating Temperature | -30 ~ 85 °C |
| Storage Temperature | -40 ~ 95 °C |
| Vibration Resistance | 2.9G (28.4 m/s²) |
| Lamp Position | Edge light type |
|---|---|
| Lamp Type | CCFL |
| Lamp Amount | 1 pcs |
| Lamp Shape | L shape |
| Lamp Life Time | 10K(Min.) (Hours) |
| Lamp Voltage | 540±50V |
| Lamp Current | 6.5/7.0mA (Typ./Max.) |
| Lamp Operating Frequency | 60/80Khz (Typ./Max.) |
| Lamp Startup Voltage | 1000/1300/1580V (Max.)(Ta=+25/0/-30℃) |
| Interface Type | Connector |
| Lamp Driver Board | No |
| Signal Category | TTL |
|---|---|
| Signal Class | Parallel RGB (1 ch, 6-bit) |
| Input Voltage for Panel | 3.3/9.8/15/-7V (Typ.)(VCC/AVDD/VGH/VGL) |
| Input Current for Panel | 3.5/20/0.1/-0.1mA (Typ.)(ICC/IDD/IGH/IGL) |
| Interface Type | FPC |
