Product Details:
|
| Panel Model: | LM057QC1T01R | Panel Brand: | SHARP |
|---|---|---|---|
| Descrition: | 320×240 | Panel Type: | CSTN-LCD |
| Active Area: | 115.18×86.38 Mm | Outline: | 154.6×114.8 Mm |
| Highlight: | medical lcd panel,medical grade display |
||
LM057QC1T01R SHARP CSTN-LCD ,5.7 inch, 320×240 for Medical Imaging
| Panel Model | LM057QC1T01R |
|---|---|
| Panel Brand | SHARP |
| Descrition | CSTN-LCD ,5.7 inch, 320×240 |
| Panel Type | CSTN-LCD |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -25 ~ 60 °C |
Packaging & Delivery
Packaging Details: Safe & Professional packing or as requirement for the LCD Screen replacements.
Delivery Detail: 2-3 days after receipt of payment
Payment terms: We accept T/T, PayPal, Western Union and others.
| Dot Resolution | 320(RGB)×240 (QVGA) |
|---|---|
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 70 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.120×0.360 mm (H×V) |
| Pixel Pitch | 0.360×0.360 mm (H×V) |
| Weight | 200g (Typ.) |
| Active Area | 115.18×86.38 mm (H×V) |
| Bezel Area | 121.3×92.6 mm (H×V) |
| Outline Dimension | 154.6×114.8 mm (H×V) |
| Outline Depth | 8.3±0.5 mm |
| Holes & Brackets | Face mounting holes (2-Φ3.2, 2-R1.6) |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
Quality Control:
Make sure No damage, No Scratches, No dusty, No light leakage.
Make sure all functions are 100% tested ok
| Display Mode | STN, Normally Black, Transmissive |
|---|---|
| Brightness | 180 cd/m² (Typ.) |
| Contrast Ratio | 40 : 1 (Typ.) (Transmissive) |
| Display Color | Color () |
| Response Time | 450/100 (Typ.)(Tr/Td) |
| Viewing Angle | 50/50/35/60 (Typ.)(CR≥2) (L/R/U/D) |
| White color Chromaticity | Wx:0.320; Wy:0.330 |
| Sunlight Readable | N |
Packing& Shipping:
Fast & Cheap Delivery: We have big discount from forwarder (Long Contract).
Guarantee:
(1) All items will be strictly tested and shipped with strong package.
(2) We have 3~6months warranty for every item, depend on the different item.
(3) We will do our best to solve any possible problem for your after sale. Please contact with us.
| Vertical Frequency | 75Hz |
|---|---|
| Reverse Scan | No |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LJ64K051 | SHARP | 9.4" | 640×480 |
| LJ64H052 | SHARP | 10.4" | 640×480 |
| LJ64H051 | SHARP | 9.4" | 640×480 |
| LJ64H034 | SHARP | 8.9" | 640×400 |
| LJ64EU34 | SHARP | 8.9" | 640×400 |
| LJ640U25 | SHARP | 7.9" | 640×200 |
| LJ32H028 | SHARP | 4.7" | 320×240 |
| LJ089MB2S01 | SHARP | 8.9" | 640×400 |
We also have other industrial LCD panels, pls contact to us for the further information

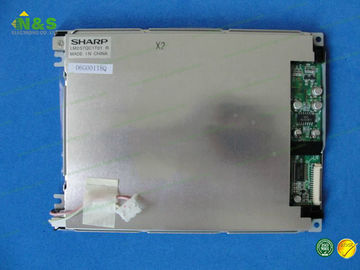

LM057QC1T01R pictures
