Product Details:
|
| Panel Type: | FSTN-LCD | Panel Size: | 5.1 Inch |
|---|---|---|---|
| Resolution: | 240×128 | Active Area: | 119.98×63.98 Mm |
| Surface: | Glare (Haze 0%) | Input Voltage: | 5.0V (Typ.) |
| High Light: | monochrome lcd panel,hitachi lcd screen |
||

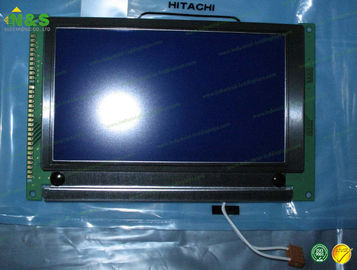

SP14N001-Z1A Hitachi 5.1 inch, 240×128 Surface Glare (Haze 0%) Lamp Type 1 pcs CCFL Without Driver
SP14N001-Z1A Basic Information
| Panel Model | SP14N001-Z1A |
| Panel Brand | HITACHI |
| Descrition | FSTN-LCD ,5.1 inch, 240×128 |
| Panel Type | FSTN-LCD |
| Operating Temperature | -10 ~ 60 °C |
| Storage Temperature | -20 ~ 70 °C |
SP14N001-Z1A Mechanical Features
| Dot Resolution | 240×128 |
| Pixel Configuration | Rectangle |
| Pixel Density | 50 PPI |
| Aspect Ratio | 17:9 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.50×0.50 mm (H×V) |
| Pixel Pitch | 0.50×0.50 mm (H×V) |
| Surface | Glare (Haze 0%) |
| Active Area | 119.98×63.98 mm (H×V) |
| Bezel Area | 124.0×70.0 mm (H×V) |
| Outline Dimension | 159.4×101 mm (H×V) |
| Outline Depth | 12.8 (Max.) mm |
| Holes & Brackets | Face mounting holes (2-Φ3.0, 2-R1.5) |
| Landscape or Portrait | Landscape type |
| Touch Panel | Embeded (4-wire Resistive) |
SP14N001-Z1A Optical Features
| Display Mode | STN, Black/White (Negative), Transmissive |
| Brightness | 114 cd/m² (Typ.) |
| Contrast Ratio | 20 : 1 (Typ.) (Transmissive) |
| Display Color | Monochrome () |
| Response Time | 120/150 (Typ.)(Tr/Td) |
| Viewing Angle | 40 (Typ.)(CR≥2, Φ2-Φ1) (L/R/U/D) |
| Viewing Direction | 6 o'clock |
| White Variation | 1.30 (Max.)(9 points) |
| Sunlight Readable | N |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| BP070WX6-400 | BOE | 7.0" | 800×1280 |
| B070EAN02.0 CELL | AUO | 7.0" | 800×1280 |
| LSC480HJ08 | Samsung | 48" | 1920×1080 |
| LSC650FN01-W | Samsung | 65" | 3840×2160 |
| LQ133M1JW08A | SHARP | 13.3" | 1920×1080 |
| LH470WX3-SH03 | LG Display | 4.7" | 720×1280 |
| V650HP2-PS5 | Innolux | 65" | 1920×1080 |
| LC490DUY-SHA1 | LG Display | 49" | 1920×1080 |
| M320QAN01.0 CELL | AUO | 32.0" | 3840×2160 |
