Product Details:
|
| Panel Brand: | TIANMA | Panel Type: | A-Si TFT-LCD |
|---|---|---|---|
| Surface: | Clear | Frequency: | 60Hz |
| Signal Interface: | LVDS (1 Ch, 6/8-bit) , 40 Pins | Panel Model: | TM080TDHG01 |
| High Light: | black and white lcd display,lcd panel screen |
||

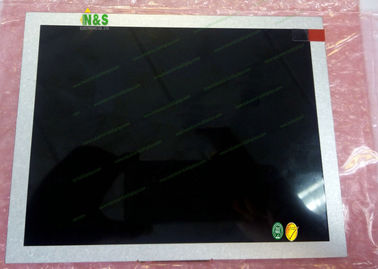

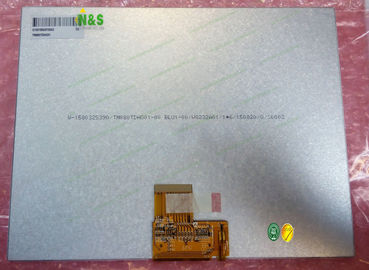

Normally White TM080TDHG01 Tianma 162.048×121.536 mm Active Area for 60Hz
What is our advantage?
Factory Experience: More than 6 years of experience in the agency & sourcing line of Hard-to-find LCD Screen replacements.
Delivery Quantity: 50-100 cartons shipped by DHL every week
Supply Ability: 100 pcs Panels per day.
Supply Area: All over the word (Most of North America, South America, Europe, Japan, Korea and more.)
Warranty: 12 months.
TM080TDHG01 Information
| Panel Model | TM080TDHG01 |
|---|---|
| Panel Brand | TIANMA |
| Descrition | a-Si TFT-LCD ,8.0 inch, 1024×768 |
| Panel Type | a-Si TFT-LCD |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 162.048×121.536 mm |
| Outline | 183×141×3.7 mm |
| Surface | Clear |
| Contrast Ratio | 700:1 (Typ.) |
| Display Colors | 262K/16.7M (6-bit / 6-bit + Dithering) , CIE1931 50% |
| Response Time | 20 (Typ.)(Tr+Td) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 3S9P WLED Without Driver |
| Signal Interface | LVDS (1 ch, 6/8-bit) , 40 pins |
| Input Voltage | 3.3/11.5/20.0/-7.0V (Typ.)(DVDD/AVDD/VGH/VGL) |
| Dot Resolution | 1024(RGB)×768 (XGA) |
|---|---|
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 160 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.05275×0.15825 mm (H×V) |
| Pixel Pitch | 0.15825×0.15825 mm (H×V) |
| Weight | TBD |
| Surface | Clear |
| Active Area | 162.048×121.536 mm (H×V) |
| Bezel Area | 164.65×124.14 mm (H×V) |
| Outline Dimension | 183×141 mm (H×V) |
| Outline Depth | 3.4±0.3 mm |
| Holes & Brackets | Wihtout |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
We Can Do for You:
1) One-to-one service with efficient & professional support;
2) Protection of your design and all your private information;
3) We could supply different hard disk for you.
4) Quality stability, can to provide certification of products;
5) Convenient payment methods: PayPal, T/T and Western Union;
6) Speedy shipment: we could arrange the shipment within 1-3 business days.
7) Quality & Service: Our priority has always been providing our clients with great quality products and superior customer service.
8) Unbeatable Prices: We continuously strive to find ways of reducing our production costs, and passing the savings to you.
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| TM045YYSP02 | Tianma | 4.5" | 480×854 |
| TM016XYHP01 | Tianma | 1.6" | 256×320 |
| TM050JYSP01 | Tianma | 5.0" | 720×1280 |
| TL055VGXP01 | Tianma | 5.5" | 1080×1920 |
| TM045YYHP08 | Tianma | 4.5" | 480×854 |
| TL050JGXP01 | Tianma | 5.0" | 720×1280 |
