Product Details:
|
| Panel Brand: | TM047NDH03 | Panel Type: | A-Si TFT-LCD |
|---|---|---|---|
| Outline: | 114.3×72.5 Mm | Frequency: | 60Hz |
| High Light: | black and white lcd display,lcd display white screen |
||

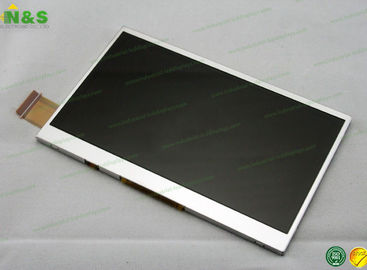

Tianma LCD Displays TM047NDH03 4.7 inch Normally White with 103.68×58.75 mm Active Area
We Can DO for You
1.Quality ensurance
100% original new and A grade,
You can enjoy the real panels directly from original factory;
2．Fast reply:
Our well-developed management system enables us to reply any kind of customers' inquiry in 24 hours.
3．Delivery ensurance:
Large Stock System, We have our own warehouses in Shenzhen and HongKong, with comprehensive supply lines.
4．After-Sale Service:
Professional support team to provide effective service, we are young and full of passion!
5. Professional acknowledgement of lcd panels industry to provide customers with effective advise.
We have been in original lcd panels industry for more than 6 years and know the main brands' lcd panel price system very well. What's more, we have our own engineer team to provide our customers guideline for choosing panels for their new projects.
6. Competitive quotation:
We are insistent in lcd panel industry. Our big customers network ensures us to provide large orders regularly for these original factories. What's more, our financial strength enables us to absorb large stock. All these make our price more and more competitive.
TM047NDH03
| Panel Model | TM047NDH03 |
|---|---|
| Panel Brand | TIANMA |
| Descrition | a-Si TFT-LCD ,4.7 inch, 480×272 |
| Panel Type | a-Si TFT-LCD |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 103.68×58.75 mm |
| Outline | 114.3×72.5 mm |
| Surface | Clear, Hard coating (3H) |
| Contrast Ratio | 500:1 (Typ.) |
| Display Colors | 16.7M (8-bit) , CIE1931 50% |
| Response Time | 25 (Typ.)(Tr+Td) |
| Viewing Angle | 70/70/60/70 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 5S2P WLED Without Driver |
| Signal Interface | Parallel RGB (1 ch, 8-bit) , 40 pins |
| Input Voltage | 3.3V (Typ.) |
TM047NDH03 Mechanical Features
| Dot Resolution | 480(RGB)×272 (WQVGA) |
|---|---|
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 117 PPI |
| Aspect Ratio | 16:9 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.072×0.216 mm (H×V) |
| Pixel Pitch | 0.216×0.216 mm (H×V) |
| Weight | 60g |
| Surface | Clear, Hard coating (3H) |
| Active Area | 103.68×58.75 mm (H×V) |
| Outline Dimension | 114.3×72.5 mm (H×V) |
| Outline Depth | 3.8 (Typ.) mm |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
