Small 3.5 Inch Tianma LCD Displays TM035KBH02 With No Light Leakage

Small 3.5 Inch Tianma LCD Displays TM035KBH02 With No Light Leakage
Small 3.5 Inch Tianma LCD Displays TM035KBH02 With No Light Leakage Small 3.5 Inch Tianma LCD Displays TM035KBH02 With No Light Leakage

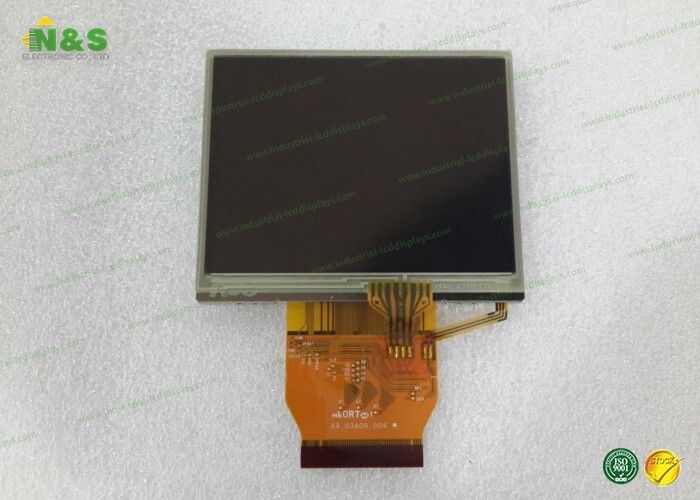

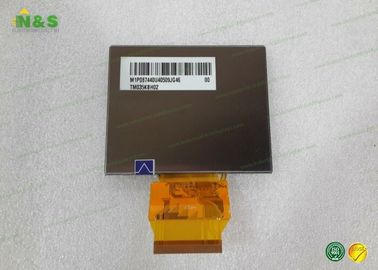

Large Image :  Small 3.5 Inch Tianma LCD Displays TM035KBH02 With No Light Leakage

Product Details:
Place of Origin: Taiwan
Brand Name: Tianma LCD Displays
Certification: ISO9001
Model Number: TM035KBH02
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time: 2-3 working days after payment confirmation
Payment Terms: T/T, Paypal, Western Union, MoneyGram
Supply Ability: 100 PCS / DAY

Small 3.5 Inch Tianma LCD Displays TM035KBH02 With No Light Leakage

Description
Panel Brand: TIANMA Size: 3.5 Inch
Display Mode: Normally White Panel Type: A-Si TFT-LCD
High Light:

black and white lcd display

,

lcd panel screen

TM035KBH02 TIANMA 3.5 inch with 70.08×52.56 mm Active Area for 60HZ LCD display panel

We Can Do for You:
1) One-to-one service with efficient & professional support;
2) Protection of your design and all your private information;
3) We could supply different hard disk for you.
4) Quality stability, can to provide certification of products;
5) Convenient payment methods: PayPal, T/T and Western Union;
6) Speedy shipment: we could arrange the shipment within 1-3 business days.
7) Quality & Service: Our priority has always been providing our clients with great quality products and superior customer service.
8) Unbeatable Prices: We continuously strive to find ways of reducing our production costs, and passing the savings to you.




Panel ModelTM035KBH02
Panel BrandTIANMA
Descritiona-Si TFT-LCD ,3.5 inch, 320×240
Panel Typea-Si TFT-LCD
Display ModeTN, Normally White, Transmissive
Active Area70.08×52.56 mm
Outline76.9×63.9×4.2 mm
SurfaceAntiglare, Hard coating (3H)
Contrast Ratio500:1 (Typ.)
Display Colors16.7M (6-bit + Dithering) , CIE1931 50%
Response Time25 (Typ.)(Tr+Td)
Viewing Angle70/70/60/70 (Typ.)(CR≥10) (L/R/U/D)
Frequency60Hz
Lamp Type6S1P WLED Without Driver
Signal InterfaceDigital RGB (8/24-bit) + SPI, CCIR601/656 , 54 pins
Input Voltage3.3V (Typ.)



About Shipping:

1.     we will test them strictly before shipping.
2.     we will ship it in 1-3 working days after your paying.we only ship according to the shipping  address,if you want to change shipping address,pls contact me in advance in time.as to the shipping time,it usually will be 7-30 days,which will be different for different countries.
3.     Delivery time is approx:
        United States / United Kingdom / Australia 7-14 working days.
        Canada 7-25 working days.
        France / Spain / Germany may take 7-20 working days.
        Eastern Europe may take up to 16-30 working days.
        Italy / Brazil / South America may take up to 30-50 working days.
       Shipped by DHL Express (Need 3-6 working days to arrive)

Our Advantages for LCD panel:


1FOG automatical device can ensure the capacity of 1000,000 per month.
2MOQ can be 100pcs, lead time of standard products is 20 days.
3Reliability test and full examination to ensure the high quality of the display.
4OEM&ODM are provided for TFT/TN LCD/Plastic Moulding.
5Strictly ISO quality management system.
6Mature and Professional R&D and after service.
7Various cooperation experience with big brands
