Product Details:
|
| Series: | TM050QDH | Keywords Desc.: | Tianma 5.0" TN LCM 640×480 350nits WLED TTL 45pins |
|---|---|---|---|
| Product Class: | Graphic LCD Display | Product Tags: | Color TFT-LCD,Transmissive LCD |
| Application: | VOIP Phone | Panel Type: | A-Si TFT-LCD |
| Panel Composition: | LCM | Panel Size: | 5.0" |
| Resolution: | 640×480 | Aspect Ratio: | 4:3 (W:H) |
| Form Factor: | Flat Rectangle Display | Orientation: | Landscape Type |
| Active Area: | 101.568 (W) × 76.176 (H) Mm (A.A) | Outline Dimension: | 117.35 (W) × 88.43 (H) Mm |
| Max. Depth: | 15 Mm | Weight: | 86.04.3g |
| LC Family: | TN | Polarizer: | Transmissive |
| Brightness: | 350 (Typ.) | Contrast Ratio: | 500:1 (Typ.) |
| High Light: | lcd display white screen,lcd panel screen |
||
TM050QDH11 Tianma LCD Displays 5.0 inch TN LCM 640×480 350nits WLED TTL 45pins
Our advantages in the LCD Screen market:
1.Better price
2.Fast delivery
3.Top quality
4.First class after - sales service
5.No memory effect
6.Sourcing lines & Distributors for the EOL LCD.
Packaging & Delivery
Packaging: Safety Package For all of our LCD Screen Panel Replacements.
Details: 1. Antistatic bag
2. Layers of cartons
3. Foam Box
4. Carton Box.
TM050QDH11 Characteristic
| Panel Brand : | TIANMA |
| Panel Model : | TM050QDH11 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 5.0 inch |
| Resolution : | 640(RGB)×480 , VGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 101.568×76.176 mm |
| Outline : | 117.35×88.43×15 mm |
| Surface : | Antiglare, Hard coating (3H) |
| Brightness : | 350 cd/m2 (Typ.) |
| Contrast Ratio : | 500:1 (Typ.) |
| Display Colors : | 262K (6-bit) , CIE1931 50% |
| Response Time : | 20 (Typ.)(Tr+Td) |
| Viewing Angle : | 70/70/60/70 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 3S5P WLED |
| Signal Interface : | Parallel RGB (1 ch, 6-bit) + SPI , 45 pins |
| Input Voltage : | 3.3V (Typ.) |
| Panel Size : | 5.0 inch |
| Dot Resolution : | 640(RGB)×480 (VGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 160 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0529×0.1587 mm (H×V) |
| Pixel Pitch : | 0.1587×0.1587 mm (H×V) |
| Weight : | 86.0±4.3g |
| Surface : | Antiglare, Hard coating (3H) |
| Active Area : | 101.568×76.176 mm (H×V) |
| Outline Dimension : | 117.35×88.43 mm (H×V) |
| Outline Depth : | 7.9/15.0 (Typ./Max.) mm |
| Holes & Brackets : | Face mounting holes (4 pcs) on up, down, right slugs |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| TM240160XCFWGRA | Tianma | 2.2" | 240×160 |
| TM128128F6CCWGWC1 | Tianma | 1.44" | 128×128 |
| TM12864G3CCWGWA-1 | Tianma | 2.4" | 128×64 |
| TM050XYSP02 | Tianma | 5.0" | 540×960 |
| TM050JYHN11-00 | Tianma | 5.0" | 720×1280 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

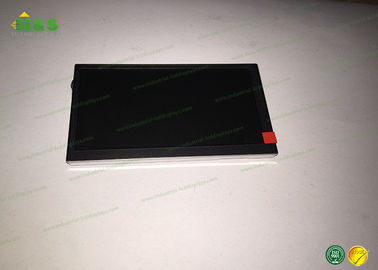

TM050QDH11 Picture
