T-51866D121J-FW-A-AA Optrex LCD Display 12.1 inch Normally White with 246×184.5 mm

T-51866D121J-FW-A-AA Optrex LCD Display  	12.1 inch Normally White with  	246×184.5 mm
T-51866D121J-FW-A-AA Optrex LCD Display  	12.1 inch Normally White with  	246×184.5 mm

Large Image :  T-51866D121J-FW-A-AA Optrex LCD Display 12.1 inch Normally White with 246×184.5 mm

Product Details:
Place of Origin: Japan
Brand Name: OPTREX
Certification: ISO9001
Model Number: T-51866D121J-FW-A-AA
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time: 2-3 working days after payment confirmation
Payment Terms: T/T, Western Union,paypal
Supply Ability: 100 PCS / DAY

T-51866D121J-FW-A-AA Optrex LCD Display 12.1 inch Normally White with 246×184.5 mm

Description
Resolution: 800(RGB)×600 , SVGA Display Mode: TN, Normally White, Transmissive
Active Area :: 246×184.5 Mm Outline: 280×210×12.5 Mm
High Light:

optrex lcd panel

,

lcd module display

T-51866D121J-FW-A-AA Optrex LCD Display 12.1 inch Normally White with 246×184.5 mm

T-51866D121J-FW-A-AA Quick Details:

Panel Brand :OPTREX
Panel Model :T-51866D121J-FW-A-AA
Panel Type :a-Si TFT-LCD , LCM
Panel Size :12.1 inch
Resolution :800(RGB)×600 , SVGA
Display Mode :TN, Normally White, Transmissive
Active Area :246×184.5 mm
Outline :280×210×12.5 mm
Surface :Antiglare, Hard coating (3H)
Brightness :350 cd/m2 (Typ.)
Contrast Ratio :500:1 (Typ.)
Display Colors :262K/16.2M (6-bit / 6-bit + FRC)
Response Time :10/30 (Typ.)(Tr/Td)
Viewing Angle :65/65/45/75 (Typ.)(CR≥10) (L/R/U/D)
Frequency :60Hz
Lamp Type :2 pcs CCFL
Signal Interface :LVDS (1 ch, 6/8-bit) , 20 pins
Input Voltage :3.3V (Typ.)



OPTREX T-51866D121J-FW-A-AA Mechanical Features

Panel Size :12.1 inch
Dot Resolution :800(RGB)×600 (SVGA)
Pixel Configuration :RGB Vertical Stripe
Pixel Density :82 PPI
Aspect Ratio :4:3 (H:V)
Form Factor :Flat Rectangle Display
Dot Pitch :0.1025×0.3075 mm (H×V)
Pixel Pitch :0.3075×0.3075 mm (H×V)
Weight :720g (Typ.)
Surface :Antiglare, Hard coating (3H)
Active Area :246×184.5 mm (H×V)
Bezel Area :249.0×187.5 mm (H×V)
Outline Dimension :280×210 mm (H×V)
Outline Depth :12.0 (Typ.) mm
Holes & Brackets :Face mounting holes (4-Φ3.5) on left bezel, right slugs
Landscape or Portrait :Landscape type
Touch Panel :Without


What is Our Advantage?

1. We are the professional supplier of the industrial LCD Screen Replacements, located in the biggest components center of the world.

2. We can provide the one-stop purchase service.

3. Our clients can grow their business by focusing on their sales, ware-housing and distribution while we take care of their China buying.

4. Client relationship and production management are the key factors that ensure successful China buying. Your account will be managed by our professional project managers.

5. Fast delivery.

6. Reasonable price.

FAQ
Q1: What's price?
A1: We provide reasonable price and recommend suitable batteries to our customers.
Q2: What's delivery time?
A2: The delivery time is normally 1-3 working days after payment.
Q3: What's the payment?
A3: We accept T/T, Western Union, MoneyGram, Paypal
Q4: Can we visit your factory?
A4: Warmly welcome. Once we have your schedule, we will arrange professional sales team to follow up your case.

Below are our other LCD panels stock for your easy reference:

Panel ModelBrandSizeResolution
SXGA060SGOLiGHTEK0.6"1280×1024
SXGA060SWOLiGHTEK0.6"1280×1024
SXGA060SCOLiGHTEK0.6"1280×1024
SVGA097SGOLiGHTEK0.97"800×600
SVGA097SWOLiGHTEK0.97"800×600
SVGA097SCOLiGHTEK0.97"800×600

We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

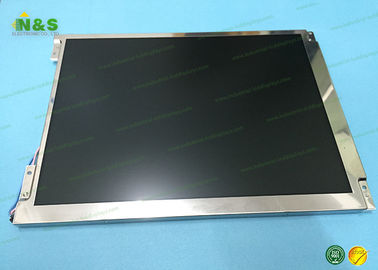

T-51866D121J-FW-A-AA Picture
