Product Details:
|
| Panel Size: | 4.1 Inch | Active Area: | 88.8×53.28 Mm |
|---|---|---|---|
| Brightness: | 350 Cd/m² (Typ.) | Input Voltage: | 3.0/3.0V (Typ.)(VCC/VCCIO) |
| High Light: | nec lcd touch screen,nec tft lcd |
||

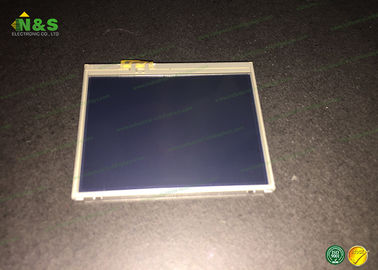

Normally White NL8048HL11-01A 4.1 inch NEC with 88.8×53.28 mm Active Area
NL8048HL11-01A Characteristic
| Panel Brand : | NEC |
| Panel Model : | NL8048HL11-01A |
| Panel Type : | LTPS TFT-LCD , LCM |
| Panel Size : | 4.1 inch |
| Resolution : | 800(RGB)×480 , WVGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 88.8×53.28 mm |
| Outline : | 99.6×69.5 mm |
| Surface : | Clear |
| Brightness : | 350 cd/m² (Typ.) |
| Contrast Ratio : | 400:1 (Typ.) |
| Display Colors : | 16.7M (8-bit) , CIE1931 70% |
| Response Time : | 8/17 (Typ.)(Tr/Td) |
| Viewing Angle : | 80/80/60/80 (Typ.)(CR≥10) (L/R/U/D) |
| Lamp Type : | WLED |
| Signal Interface : | CMOS (1 ch, 8-bit) + SPI , 51 pins |
| Input Voltage : | 3.0/3.0V (Typ.)(VCC/VCCIO) |
Competitive Advantage:
1. Rich experience.
Having been specialized in this field for years, we have rich experience and widespread sales network around the word.
2. Great quality and high purity
Good quality is one secret for our success.
3. Safest and fastest delivery.
We have mass stock, so that we can arrange the delivery within 24hours once receiving the payment. Tracking number would be informed quickly after shipment.
4. Good after-sales service.
24/7 is available. Try our best to solve various problems customers encountered!
2017021701
The reasons you choose us
1).More competitive price! As a professional LCD Distributor, we have our own souring lines &solutions to support us for the more competitive service, not only the price, but also the stock for the hard-to-find LCD panels.
2).Great quality! All LCD Screen we sent are with good quality guarantee, 100% quality check and full one year warranty!
3).Fast delievery! Delivery time will be faster than others.
4).Great shipping service! We have cooperated with DHL,UPS and EMS for long time, so we could promise save much more money on the shipping cost and better service is offered!
5).Best sale-service! Professional team to service with you before sale, on sale & after service.
NL8048HL11-01A General Features
| Panel Size : | 4.1 inch |
| Dot Resolution : | 800(RGB)×480 (WVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 228 PPI |
| Aspect Ratio : | 15:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.037×0.111 mm (H×V) |
| Pixel Pitch : | 0.111×0.111 mm (H×V) |
| Surface : | Clear |
| Active Area : | 88.8×53.28 mm (H×V) |
| Outline Dimension : | 99.6×69.5 mm (H×V) |
| Outline Depth : | 5.0±0.2 mm |
| Landscape or Portrait : | Landscape type |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| ED312TT2 | E Ink | 31.2" | 2560×1440 |
| EN133UT1 | E Ink | 13.3" | 1600×1200 |
| ED047TC1 | E Ink | 4.7" | 540×960 |
| ED133UT1 | E Ink | 13.3" | 1600×1200 |
| ES133UT1 | E Ink | 13.3" | 1600×1200 |
