Product Details:
|
| Resolution: | 640(RGB)×480 , VGA | Display Mode: | TN, Normally White, Transflective |
|---|---|---|---|
| Active Area: | 211.2×158.4 Mm | Outline: | 243×185.1×11.5 Mm |
| High Light: | nec tft lcd,nec lcd screen |
||
NL6448BC33-50E NEC LCD Panel 10.4 inch Normally White with 211.2×158.4 mm
NL6448BC33-50E Detailed Product Description
| Panel Brand : | NEC |
| Panel Model : | NL6448BC33-50E |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 10.4 inch |
| Resolution : | 640(RGB)×480 , VGA |
| Display Mode : | TN, Normally White, Transflective |
| Active Area : | 211.2×158.4 mm |
| Outline : | 243×185.1×11.5 mm |
| Surface : | Clear, Hard coating (2H), Antireflection |
| Brightness : | 250 cd/m2 (Typ.) |
| Contrast Ratio : | 100:1 (Typ.)(Transmissive) 8:1 (Typ.)(Reflective) |
| Display Colors : | 262K (6-bit) , CIE1931 50% |
| Response Time : | 5/20 (Typ.)(Tr/Td) |
| Viewing Angle : | 75/55/40/55 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 2 pcs CCFL |
| Signal Interface : | CMOS (1 ch, 6-bit) , 31 pins |
| Input Voltage : | 3.3/5.0V (Typ.)(VCC) |
| Panel Size : | 10.4 inch |
| Dot Resolution : | 640(RGB)×480 (VGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 76 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.110×0.330 mm (H×V) |
| Pixel Pitch : | 0.330×0.330 mm (H×V) |
| Weight : | 560/590g (Typ./Max.) |
| Surface : | Clear, Hard coating (2H), Antireflection |
| Active Area : | 211.2×158.4 mm (H×V) |
| Bezel Area : | 215.4×161.8 mm (H×V) |
| Outline Dimension : | 243×185.1 mm (H×V) |
| Outline Depth : | 11.0±0.5 mm |
| Holes & Brackets : | Face mounting holes (2-Φ3.5, 2-R1.75) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Packaging & Delivery
Packaging Details:
Safey package
Plastic trays inside
2 layes of cartons
Fragile sign on top
Can be customize 3.5 inch spare parts auo used lcd panel
Delivery Detail: 1-3 Working Days
FAQ
Q1: What's price?
A1: We provide reasonable price and recommend suitable batteries to our customers.
Q2: What's delivery time?
A2: The delivery time is normally 1-3 working days after payment.
Q3: What's the payment?
A3: We accept T/T, Western Union, MoneyGram, Paypal
Q4: Can we visit your factory?
A4: Warmly welcome. Once we have your schedule, we will arrange
professional sales team to follow up your case.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| NL6448HL11-02 | NLT | 3.5" | 640×480 |
| NL12876AC18-03KD | NLT | 10.6" | 1280×768 |
| NL12876AC18-03BD | NLT | 10.6" | 1280×768 |
| NL10276BC13-01BD | NLT | 6.5" | 1024×768 |
| NL10276BC28-27E | NLT | 14.1" | 1024×768 |
| NL10276BC28-24C | NLT | 14.1" | 1024×768 |
| NL2432HC22-30B | NLT | 3.5" | 240×320 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

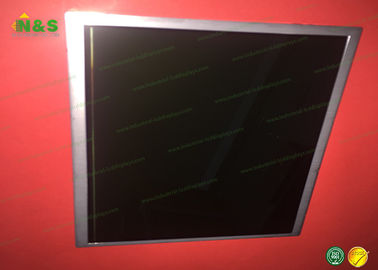

NL6448BC33-50E Picture
