Product Details:
|
| Panel Size: | 8.4 Inch | Resolution: | 800(RGB)×600 , SVGA |
|---|---|---|---|
| Display Mode: | TN, Normally White, Transmissive | Active Area: | 170.4×127.8 Mm |
| Display Colors: | 262K/16.7M (6-bit / 6-bit + Hi-FRC) | Response Time: | 6/19 (Typ.)(Tr/Td) |
| High Light: | nec lcd touch screen,nec lcd screen |
||
NL8060BC21-10 NEC LCD Panel 8.4 inch Normally White with 170.4×127.8 mm
Our Advantage
As one of the biggest multiple electronic components & LCD panel distributors in China, we are expert in plenty of branded LCD panels, products include but not limited to:
FAQ
Q1: How do we place an order?
A1: Please kindly send us an email specifying the item No., replacements, quantity, other specifications for the Hard disk to place an order.
Q2: How do we make the payment?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: What's the delivery time?
A3: The delivery time is normally 1-3 working days after payment.
Q4: How would the goods be shipped?
A4: We ship via DHL, UPS, TNT and others.
NL8060BC21-10 Characteristic
| Panel Brand : | NEC |
| Panel Model : | NL8060BC21-10 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 8.4 inch |
| Resolution : | 800(RGB)×600 , SVGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 170.4×127.8 mm |
| Outline : | 200×152 mm |
| Surface : | Clear, Hard coating (3H) |
| Brightness : | 400 cd/m2 (Typ.) |
| Contrast Ratio : | 600:1 (Typ.) |
| Display Colors : | 262K/16.7M (6-bit / 6-bit + Hi-FRC) |
| Response Time : | 6/19 (Typ.)(Tr/Td) |
| Viewing Angle : | 80/80/80/60 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | WLED |
| Signal Interface : | LVDS (1 ch, 6/8-bit) |
| Input Voltage : | 3.3V (Typ.) |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| ED043WC1 | E Ink | 4.3" | 480×800 |
| ED043WC3 | E Ink | 4.3" | 480×800 |
| ED060XD6 | E Ink | 6.0" | 758×1024 |
| SMA058HRG1 | E Ink | 5.8" | 600×448 |
| SMA058H7G1 | E Ink | 5.8" | 600×448 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
| Panel Size : | 8.4 inch |
| Dot Resolution : | 800(RGB)×600 (SVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 119 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.071×0.213 mm (H×V) |
| Pixel Pitch : | 0.213×0.213 mm (H×V) |
| Weight : | 330g (Typ.) |
| Surface : | Clear, Hard coating (3H) |
| Active Area : | 170.4×127.8 mm (H×V) |
| Outline Dimension : | 200×152 mm (H×V) |
| Outline Depth : | 10.5±0.5 mm |
| Landscape or Portrait : | Landscape type |

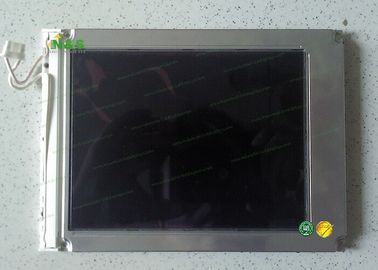

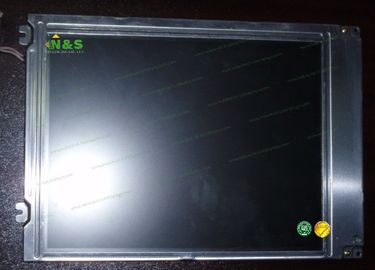

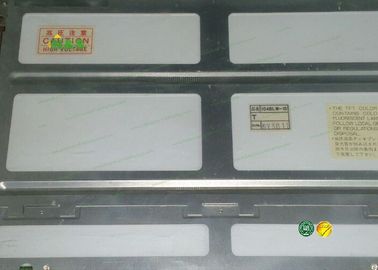

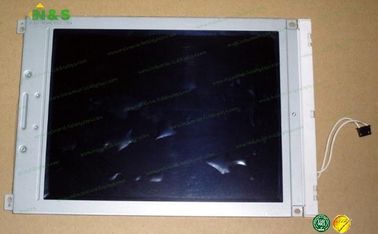

NL8060BC21-10 Picture
