Toppoly TD035STEB2 3.5 inch Replacement Lcd Panels with 53.64×71.52 mm Active Area

Toppoly TD035STEB2 3.5 inch Replacement Lcd Panels with 53.64×71.52 mm Active Area
Toppoly TD035STEB2 3.5 inch Replacement Lcd Panels with 53.64×71.52 mm Active Area

Large Image :  Toppoly TD035STEB2 3.5 inch Replacement Lcd Panels with 53.64×71.52 mm Active Area

Product Details:
Place of Origin: Japan
Brand Name: Toppoly LCD Panel
Certification: ISO9001
Model Number: TD035STEB2
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time: 2-3 working days after payment confirmation
Payment Terms: T/T, Western Union,paypal
Supply Ability: 100 PCS / DAY

Toppoly TD035STEB2 3.5 inch Replacement Lcd Panels with 53.64×71.52 mm Active Area

Description
Resolution: 240(RGB)×320 , QVGA Display Mode: TN, Normally White, Transflective
Active Area: 53.64×71.52 Mm Outline: 64×85×4.9 Mm
Contrast Ratio: 100:1 (Typ.)(Transmissive) 10:1 (Typ.)(Reflective) Display Colors: 262K (6-bit) , CIE1931 40%
High Light:

tft lcd screen

,

tft lcd panel

Samsung LCD Panel TD035STEB2 3.5 inch with 53.64×71.52 mm Active Area

TD035STEB2 Main Parameters

Panel Brand : Toppoly
Panel Model : TD035STEB2
Panel Type : LTPS TFT-LCD , LCM
Panel Size : 3.5 inch
Resolution : 240(RGB)×320 , QVGA
Display Mode : TN, Normally White, Transflective
Active Area : 53.64×71.52 mm
Outline : 64×85×4.9 mm
Brightness : 100 cd/m2 (Typ.)
Contrast Ratio : 100:1 (Typ.)(Transmissive) 10:1 (Typ.)(Reflective)
Display Colors : 262K (6-bit) , CIE1931 40%
Response Time : 10/20 (Typ.)(Tr/Td)
Viewing Angle : 55/65/45/65 (Typ.)(CR≥10) (L/R/U/D)
Lamp Type : 6S1P WLED
Signal Interface : Parallel RGB (1 ch, 6-bit) , 60 pins
Input Voltage : 3.3/5.0/11.7/-6.5V (Typ.)(VCC3/VCC5/VDD/VEE)


What is our advantage?
Factory Experience: More than 6 years of experience in the agency & sourcing line of Hard-to-find LCD Screen replacements.
Delivery Quantity: 50-100 cartons shipped by DHL every week
Supply Ability: 100 pcs Panels per day.
Supply Area: All over the word (Most of North America, South America, Europe, Japan, Korea and more.)
Warranty: 12 months.

FAQ
1. Q: Where can I get the price?
A:We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we'll regard your inquiry priority.
2. Q: How can I get a sample to check your quality?
A: After price confirmation, you can require for samples to check our quality.
3. Q: What about the lead time for mass production?
A: It depends on your order quantity and the season you place the order.
4. Q: What are your terms of payment?
A: We accept T/T, Western Union, MoneyGram, PayPal.

Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk

Panel Model Brand Size Resolution
AMS429QC14 Samsung 4.3" 540×960
AMS300FW01-0 Samsung 3.0" 240×400
AMS260CM61 Samsung 2.6" 240×320
AMS410GJ01-0 Samsung 4.1" 480×800
AMS397GE37 Samsung 4.0" 480×800
AMFN888 Samsung 3.1" 480×800



Toppoly TD035STEB2 Mechanical Features

Panel Size : 3.5 inch
Dot Resolution : 240(RGB)×320 (QVGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 113 PPI
Aspect Ratio : 3:4 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.0745×0.2235 mm (H×V)
Pixel Pitch : 0.2235×0.2235 mm (H×V)
Weight : 43.0g (Max.)
Active Area : 53.64×71.52 mm (H×V)
Bezel Area : 58.0×75.6 mm (H×V)
Outline Dimension : 64×85 mm (H×V)
Outline Depth : 4.05/4.9 (Typ./Max.) mm
Landscape or Portrait : Portrait type
Touch Panel : Embeded (4-wire Resistive)

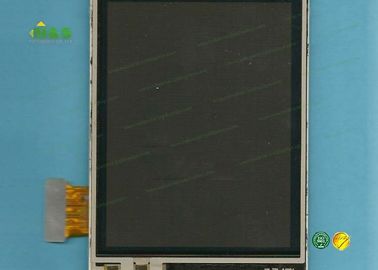

TD035STEB2 Picture

Toppoly TD035STEB2 3.5 inch Replacement Lcd Panels with 53.64×71.52 mm Active Area 0
