Product Details:
|
| Panel Size: | 7.0 Inch | Outline: | 163.2×104×3.6 Mm |
|---|---|---|---|
| Brightness: | 350 Cd/m² (Typ.) | Frequency: | 60Hz |
| High Light: | samsung lcd panel replacement,samsung lcd display panel |
||

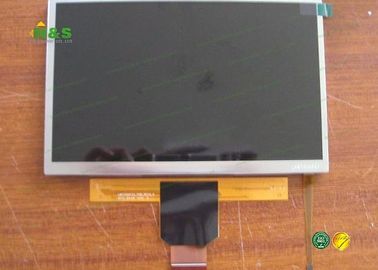

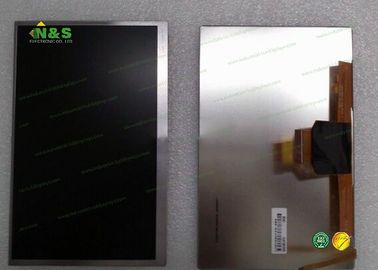

LMS700KF23 7.0 inch Samsung LCD Panel Normally White with 152.4×91.44 mm Active Area
LMS700KF23 Characteristic
| Panel Brand : | SAMSUNG SMD |
| Panel Model : | LMS700KF23 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 7.0 inch |
| Resolution : | 800(RGB)×480 , WVGA |
| Display Mode : | TN, Normally White, TMR |
| Active Area : | 152.4×91.44 mm |
| Outline : | 163.2×104×3.6 mm |
| Surface : | |
| Brightness : | 350 cd/m2 (Typ.) |
| Contrast Ratio : | 700 : 1 (Typ.) |
| Display Colors : | 16.2M (6-bit + FRC) |
| Response Time : | 16 (Typ.)(Tr+Td) |
| Viewing Angle : | 70/70/70/70 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit] |
| Lamp Type : | 8S3P WLED Without |
| Panel Size : | 7.0 inch |
| Dot Resolution : | 800(RGB)×480 (WVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 133 PPI |
| Aspect Ratio : | 15:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0635×0.1905 mm (H×V) |
| Pixel Pitch : | 0.1905×0.1905 mm (H×V) |
| Weight : | 115g (Typ.) |
| Active Area : | 152.4×91.44 mm (H×V) |
| Outline Dimension : | 163.2×104 mm (H×V) |
| Outline Depth : | 3.4±0.2 mm |
| Holes & Brackets : | Without |
Our Services
Payment:
(1) Bank transfer , Western Union , T/T, Paypal are accepted.
(2) If any problem of payment, you can contact with us.
Shipment:
(1) Worldwide shipping. Any delivery way you want to choose, please contact us.
(2) All our LCD display will be shipped within1-3 days after confirmed full payment. Please inform us the price you want to mark on the invoice for the LCD screens.
(3) Please make sure your address is correct and deliverable by Express you choose. Your full name is recommended, especially Russian buyers.
(4) Delivery time is approximate:
------Via DHL, Fedex, UPS: 3-7working days
------Via EMS:7-15 working days
------Via Direct Express Line:1-3 working days.
What’s our advantage compared with other suppliers?
(1). Before shipment, we will test every LCD Screen and ensure the quality.
(2). we provide high quality lcd panels for customers all over the world.
(3) .We have DBS, ISO9001 Certifications for our Panels.
(4) .Excellent service on before-sale, on-sale and after-sale.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| AMS465GS47 | Samsung | 4.7" | 720×1280 |
| AMS477GV11 | Samsung | 4.8" | 720×1280 |
| AMS499QP59 | Samsung | 5.0" | 1080×1920 |
| AMS499QP53 | Samsung | 5.0" | 1080×1920 |
| AMS499QP07 | Samsung | 5.0" | 1080×1920 |
| AMS499QP01 | Samsung | 5.0" | 1080×1920 |
| AMS568AT01 | Samsung | 5.7" | 1440×2560 |
| AMS840CS04 | Samsung | 8.4" | 1600×2560 |
