Product Details:
|
| Active Area: | 94.39×70.79 Mm | Outline: | 134×100 Mm |
|---|---|---|---|
| Contrast Ratio: | 4:1 (Typ.)(Transmissive) 5:1 (Typ.)(Reflective) | Display Colors: | Monochrome |
| Response Time: | 180/270 (Typ.)(Tr/Td) | Viewing Angle: | 35/25/30/25 (Typ.)(CR≥2) (L/R/U/D) |
| High Light: | sharp lcd display panels,sharp lcd flat screen |
||
LM046QB1S02 4.6 inch Sharp LCD Panel Transflective for Industrial Application
LM046QB1S02 Quick Details:
| Panel Brand : | SHARP |
| Panel Model : | LM046QB1S02 |
| Panel Type : | FSTN-LCD , LCM |
| Panel Size : | 4.6 inch |
| Resolution : | 320×240 , QVGA |
| Display Mode : | STN, Black/White (Positive), Transflective |
| Active Area : | 94.39×70.79 mm |
| Outline : | 134×100 mm |
| Brightness : | 100 cd/m2 (Typ.) |
| Contrast Ratio : | 4:1 (Typ.)(Transmissive) 5:1 (Typ.)(Reflective) |
| Display Colors : | Monochrome |
| Response Time : | 180/270 (Typ.)(Tr/Td) |
| Viewing Angle : | 35/25/30/25 (Typ.)(CR≥2) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 1 pcs CCFL |
| Signal Interface : | Parallel Data (4-bit) , 20 pins |
| Input Voltage : | 3.3V (Typ.) |
What is Our Advantage?
1. We are the professional supplier of the industrial LCD Screen Replacements, located in the biggest components center of the world.
2. We can provide the one-stop purchase service.
3. Our clients can grow their business by focusing on their sales, ware-housing and distribution while we take care of their China buying.
4. Client relationship and production management are the key factors that ensure successful China buying. Your account will be managed by our professional project managers.
5. Fast delivery.
6. Reasonable price.
FAQ
Q1: Can I place sample order first?
A1: Yes, we will quote you different prices for small, medium and large qty. You can order with different price for different qty.
Q2: How could I pay them?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: How to place the order?
A3: Please send us your purchase order by e-mail, whatsapp or Skype or you can ask us to send you a Proforma Invoice for your order.
Q4: How long can I get my order?
A4: For samples, we will finish production and ship within 1-3 working days. For bulk orders, that will base on the order quantity.
Q5: How to send us the products?
A5: We usually use DHL, UPS, FedEx to ship our LCD screen replacements to our clients.
| Display Mode : | STN, Black/White (Positive), Transflective |
| Brightness : | 100 cd/m2 (Typ.) |
| Contrast Ratio : | 4 : 1 (Typ.) (Transmissive) |
| Contrast Ratio : | 5:1 (Typ.) (Reflective) |
| Display Color : | Monochrome () |
| Response Time : | 180/270 (Typ.)(Tr/Td) |
| Viewing Angle : | 35/25/30/25 (Typ.)(CR≥2) (L/R/U/D) |
| Sunlight Readable : | Y |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| LM121VB1T02 | SHARP | 12.1" | 640×480 |
| LM121VB1T01 | SHARP | 12.1" | 640×480 |
| LM32015T | SHARP | 5.7" | 320×240 |
| LM8V302D | SHARP | 7.7" | 640×480 |
| LM104VC1T51 R | SHARP | 10.4" | 640×480 |
| LM104VC1T51 | SHARP | 10.4" | 640×480 |
| LM7M632R | SHARP | 6.5" | 640×240 |
| LM64P30R | SHARP | 9.4" | 640×480 |
| LM320195 | SHARP | 5.7" | 320×240 |

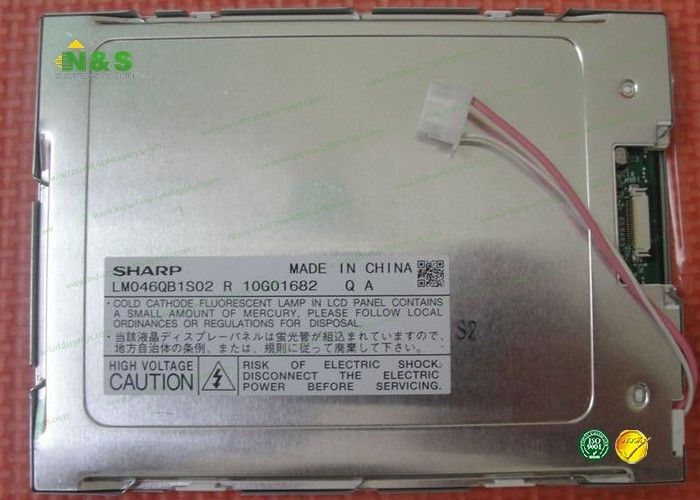

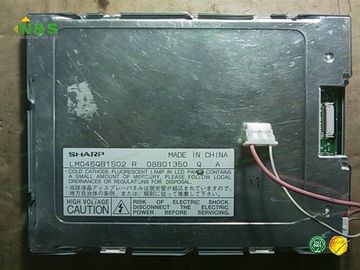

Details Picture for LM046QB1S02
