Home ProductsHitachi LCD Panel

5.7 Inch SP14Q002-A1 Monochrome Hitachi LCD Panel with 115.185×86.385 mm

5.7 Inch SP14Q002-A1 Monochrome Hitachi LCD Panel with 115.185×86.385 mm

5.7 Inch SP14Q002-A1 Monochrome Hitachi LCD Panel with 115.185×86.385 mm

Product Details:

Place of Origin: Korea
Brand Name: HITACHI
Certification: ISO9001
Model Number: SP14Q002-A1

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time: 2-3 working days after payment confirmation
Payment Terms: T/T, Western Union,paypal
Supply Ability: 100 PCS / DAY
Contact Now
Detailed Product Description
Display Mode: STN, Black/White (Negative), Transmissive Active Area: 115.185×86.385 Mm
Outline: 167×109×10 Mm Surface: Antiglare
Brightness: 140 Cd/m² (Typ.) Contrast Ratio: 25:1 (Typ.)

5.7 inch SP14Q002-A1 Monochrome Hitachi LCD Panel with 115.185×86.385 mm



SP14Q002-A1 Characteristic

Panel Brand : HITACHI
Panel Model : SP14Q002-A1
Panel Type : FSTN-LCD , LCM
Panel Size : 5.7 inch
Resolution : 320×240 , QVGA
Display Mode : STN, Black/White (Negative), Transmissive
Active Area : 115.185×86.385 mm
Outline : 167×109×10 mm
Surface : Antiglare
Brightness : 140 cd/m2 (Typ.)
Contrast Ratio : 25:1 (Typ.)
Display Colors : Monochrome
Response Time : 120/150 (Typ.)(Tr/Td)
Viewing Angle : 40 (Typ.)(CR≥2, Φ2-Φ1) (L/R/U/D)
Frequency : 75Hz
Lamp Type : 1 pcs CCFL
Signal Interface : Parallel Data (4-bit) , 14 pins
Input Voltage : 3.3/5.0V (Typ.)(VDD)



HITACHI SP14Q002-A1 Mechanical Features

Panel Size : 5.7 inch
Dot Resolution : 320×240 (QVGA)
Pixel Configuration : Rectangle
Pixel Density : 70 PPI
Aspect Ratio : 4:3 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.360×0.360 mm (H×V)
Pixel Pitch : 0.360×0.360 mm (H×V)
Surface : Antiglare
Active Area : 115.185×86.385 mm (H×V)
Bezel Area : 122.0×92.0 mm (H×V)
Outline Dimension : 167×109 mm (H×V)
Outline Depth : 8.5/10.0 (Typ.Max.) mm
Holes & Brackets : Face mounting holes (4-Φ3.5) on left, right bezel
Landscape or Portrait : Landscape type
Touch Panel : Without



Here comes our other LCD panels stock for your easy reference:

Pls contact to us for more stock information: salespm@nselectronic.com.hk

Panel Model Brand Size Resolution
HTT22QC2-S01 HYDIS 2.2" 176×220
HV121X02-101 HYDIS 12.1" 1024×768
HX104X03-101 HYDIS 10.4" 1024×768
HVT35HV1-DE0 HYDIS 3.5" 320×480
HVA40WV2-D02 HYDIS 4.0" 480×800
HVA35WV1-D03 HYDIS 3.5" 480×800
HVA35WV1-D02 HYDIS 3.5" 480×800
HV070WS1-D01 HYDIS 7.0" 1024×600
HX104X02-101 HYDIS 10.4" 1024×768



Our Company Strength in LCD Screen Sourcing:

  1. ISO9001 certificated, Factory Direct Supplied
  2. Competitive Price and Short Lead-time
  3. Professional Team with Rich Experiences in LCD screen international trade communication.
  4. Small MOQ Support & Fast Response to Customers
  5. Long Product Life Time
  6. 1 Year warranty for our LCD screen replacements.

FAQ

Q1: How do we place an order?

A1: Please kindly send us an email specifying the item No., replacements, quantity, other specifications for the Hard disk to place an order.

Q2: How do we make the payment?

A2: We accept T/T, Western Union, MoneyGram, Paypal.

Q3: What's the delivery time?

A3: The delivery time is normally 1-3 working days after payment.

Q4: How would the goods be shipped?

A4: We ship via DHL, UPS, TNT and others.

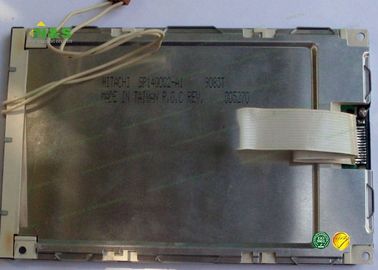

SP14Q002-A1 Picture



5.7 Inch SP14Q002-A1 Monochrome Hitachi LCD Panel with 115.185×86.385 mm
