Product Details:
|
| Surface: | Hard Coating (3H) | Active Area: | 58.104×103.296 Mm (H×V) |
|---|---|---|---|
| Outline Depth :: | 1.38±0.15 Mm | Dot Resolution: | 720(RGB)×1280 (WXGA) |
| High Light: | sharp lcd display panels,sharp lcd screen |
||

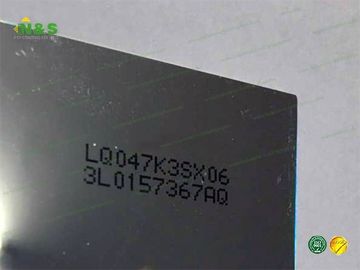

Normally Black LQ047K3SX06 Sharp 4.7 inch with 58.104×103.296 mm Active Area
What’s our advantage compared with other suppliers?
(1). Before shipment, we will test every LCD Screen and ensure the quality.
(2). we provide high quality lcd panels for customers all over the world.
(3) .We have DBS, ISO9001 Certifications for our Panels.
(4) .Excellent service on before-sale, on-sale and after-sale.
FAQ
Q1: How do we place an order?
A1: Please kindly send us an email specifying the item No., replacements, quantity, other specifications for the Hard disk to place an order.
Q2: How do we make the payment?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: What's the delivery time?
A3: The delivery time is normally 1-3 working days after payment.
Q4: How would the goods be shipped?
A4: We ship via DHL, UPS, TNT and others.
LQ047K3SX06 Characteristic
| Panel Brand : | SHARP |
| Panel Model : | LQ047K3SX06 |
| Panel Type : | IGZO TFT-LCD , LCM |
| Panel Size : | 4.7 inch |
| Resolution : | 720(RGB)×1280 , WXGA |
| Display Mode : | New Mode2, Normally Black, Transmissive |
| Active Area : | 58.104×103.296 mm |
| Outline : | 61.05×112.09×1.52 mm |
| Surface : | Hard coating (3H) |
| Brightness : | 450 cd/m2 (Typ.) |
| Contrast Ratio : | 1000:1 (Typ.) |
| Display Colors : | 16.7M (8-bit) , CIE1931 70% |
| Response Time : | 30 (Typ.)(Tr+Td) |
| Viewing Angle : | 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 10S1P WLED Without Driver |
| Signal Interface : | MIPI (4 data lanes) , 40 pins |
| Input Voltage : | 1.8/5.0/-5.0V (Typ.)(IOVCC/AVDD/AVEE) |
LQ047K3SX06 Main Parameters
| Panel Size : | 4.7 inch |
| Dot Resolution : | 720(RGB)×1280 (WXGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 314 PPI |
| Aspect Ratio : | 9:16 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0269×0.0807 mm (H×V) |
| Pixel Pitch : | 0.0807×0.0807 mm (H×V) |
| Weight : | 15.0g |
| Surface : | Hard coating (3H) |
| Active Area : | 58.104×103.296 mm (H×V) |
| Outline Dimension : | 61.05×112.09 mm (H×V) |
| Outline Depth : | 1.38±0.15 mm |
| Landscape or Portrait : | Portrait type |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
| LQ156Z1JW01 | SHARP | 15.6" | 3200×1800 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
