Home ProductsChimei LCD Panel

HJ080IA-01E Hard coating 8.0 inch Chimei LCD Panel with 162.048×121.536 mm

Certification
China N&S ELECTRONIC CO., LIMITED certification
China N&S ELECTRONIC CO., LIMITED certification
Customer Reviews
We've come back full of excellent memories, N&S is a very good organisation. Really expert for LCDs.

—— Andy

We'd like to praise the service we received from this company who faultlessly organised our LCD panel supply line.

—— M. H. Thatcher

If I plan another LCD panel order I shan't hesitate to contact you again.

—— Alejandro

I'm Online Chat Now

HJ080IA-01E Hard coating 8.0 inch Chimei LCD Panel with 162.048×121.536 mm

HJ080IA-01E Hard coating 8.0 inch Chimei LCD Panel with 162.048×121.536 mm
HJ080IA-01E Hard coating 8.0 inch Chimei LCD Panel with 162.048×121.536 mm HJ080IA-01E Hard coating 8.0 inch Chimei LCD Panel with 162.048×121.536 mm

Large Image :  HJ080IA-01E Hard coating 8.0 inch Chimei LCD Panel with 162.048×121.536 mm

Product Details:
Place of Origin: Japan
Brand Name: Chimei LCD Panel
Certification: ISO9001
Model Number: HJ080IA-01E
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time: 2-3 working days after payment confirmation
Payment Terms: T/T, Western Union,paypal
Supply Ability: 100 PCS / DAY

HJ080IA-01E Hard coating 8.0 inch Chimei LCD Panel with 162.048×121.536 mm

Description
Panel Brand: CHIMEI INNOLUX Panel Model: HJ080IA-01E
Active Area: 162.048×121.536 Mm Outline: 174×136×2.75 Mm
Contrast Ratio: 800:1 (Typ.) Display Colors: 262K/16.7M (6-bit / 6-bit + Hi-FRC) , CIE1931 50%
High Light:

chimei lcd display

,

lcd monitor panel



HJ080IA-01E Hard coating 8.0 inch Chimei LCD Panel with 162.048×121.536 mm

HJ080IA-01E  Main Parameters

Panel Brand :CHIMEI INNOLUX
Panel Model :HJ080IA-01E
Panel Type :a-Si TFT-LCD , LCM
Panel Size :8.0 inch
Resolution :1024(RGB)×768 , XGA
Display Mode :IPS, Normally Black, Transmissive
Active Area :162.048×121.536 mm
Outline :174×136×2.75 mm
Surface :Hard coating
Brightness :350 cd/m2 (Typ.)
Contrast Ratio :800:1 (Typ.)
Display Colors :262K/16.7M (6-bit / 6-bit + Hi-FRC) , CIE1931 50%
Response Time :25 (Typ.)(Tr+Td)
Viewing Angle :85/85/85/85 (Typ.)(CR>10) (L/R/U/D)
Frequency :60Hz
Lamp Type :3S11P WLED
Signal Interface :LVDS (1 ch, 6/8-bit) , 40 pins



CHIMEI INNOLUX HJ080IA-01E Mechanical Features

Panel Size :8.0 inch
Dot Resolution :1024(RGB)×768 (XGA)
Pixel Configuration :RGB Vertical Stripe
Pixel Density :160 PPI
Aspect Ratio :4:3 (H:V)
Form Factor :Flat Rectangle Display
Dot Pitch :0.05275×0.15825 mm (H×V)
Pixel Pitch :0.15825×0.15825 mm (H×V)
Weight :120g
Surface :Hard coating
Active Area :162.048×121.536 mm (H×V)
Outline Dimension :174×136 mm (H×V)
Outline Depth :2.45±0.30 mm
Holes & Brackets :Without
Landscape or Portrait :Landscape type
Touch Panel :Without


Our advantages in the LCD Screen market:
1.Better price
2.Fast delivery
3.Top quality
4.First class after - sales service
5.No memory effect
6.Sourcing lines & Distributors for the EOL LCD.


FAQ
Q1: Can I place sample order first?
A1: Yes, we will quote you different prices for small, medium and large qty. You can order with different price for different qty.
Q2: How could I pay them?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: How to place the order?
A3: Please send us your purchase order by e-mail, whatsapp or Skype or you can ask us to send you a Proforma Invoice for your order.
Q4: How long can I get my order?
A4: For samples, we will finish production and ship within 1-3 working days. For bulk orders, that will base on the order quantity.
Q5: How to send us the products?
A5: We usually use DHL, UPS, FedEx to ship our LCD screen replacements to our clients.

Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk

Panel ModelBrandSizeResolution
AE060RN01Innolux6.0"800×600
F050A12-601Innolux5.0"480×854
85C02502-Y21Innolux2.5"320×240
V260B2-P03 Rev.C2Innolux26.0"1366×768
G070YG1-P01Innolux7.0"800×480
F03215-01ZInnolux3.2"360×480
F0352A-01UInnolux3.5"320×480
F07020-01DInnolux7.0"480×234

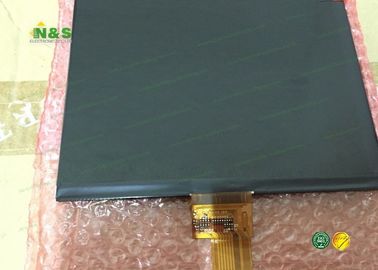

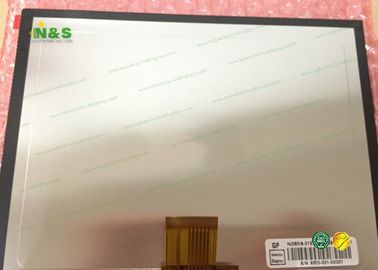

HJ080IA-01E Picture

HJ080IA-01E Hard coating 8.0 inch Chimei LCD Panel with 162.048×121.536 mm 0

HJ080IA-01E Hard coating 8.0 inch Chimei LCD Panel with 162.048×121.536 mm 1
