Product Details:
|
| Active Area: | 216.96×135.6 Mm | Outline: | 229.46×149.1×4.31 Mm |
|---|---|---|---|
| Surface: | Hard Coating | Brightness: | 350 Cd/m² (Typ.) |
| High Light: | tft lcd display,chimei lcd display |
||
EJ101IA-01G 10.1 inch Chimei LCD Panel Screen Replacement with 216.96×135.6 mm
EJ101IA-01G Quick Details:
| Panel Brand : | CHIMEI INNOLUX |
| Panel Model : | EJ101IA-01G |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 10.1 inch |
| Resolution : | 1280(RGB)×800 , WXGA |
| Display Mode : | IPS, Normally Black, Transmissive |
| Active Area : | 216.96×135.6 mm |
| Outline : | 229.46×149.1×4.31 mm |
| Surface : | Hard coating |
| Brightness : | 350 cd/m2 (Typ.) |
| Contrast Ratio : | 800:1 (Typ.) |
| Display Colors : | 16.7M (6-bit + Hi-FRC) , CIE1931 50% |
| Response Time : | 10/15 (Typ.)(Tr/Td) |
| Viewing Angle : | 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 3S10P WLED Without Driver |
| Signal Interface : | LVDS (1 ch, 8-bit) , 40 pins |
| Input Voltage : | 2.5/8.2/22.0/-7.0V (Typ.)(VDD/AVDD/VGH/VGL) |
| Panel Size : | 10.1 inch |
| Dot Resolution : | 1280(RGB)×800 (WXGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 149 PPI |
| Aspect Ratio : | 16:10 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0565×0.1695 mm (H×V) |
| Pixel Pitch : | 0.1695×0.1695 mm (H×V) |
| Weight : | 183g (Typ.) |
| Surface : | Hard coating |
| Active Area : | 216.96×135.6 mm (H×V) |
| Outline Dimension : | 229.46×149.1 mm (H×V) |
| Outline Depth : | 2.5/4.31 (Typ./Max.) mm |
| Holes & Brackets : | Without |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Shipment for the LCD Display Panels:
1. Safe & Professional package for our LCD panels.
2. We can ship to you by UPS/FEDEX/DHL/TNT and so on. Other shipping terms can also be arranged according to specific requirements.
3. We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service.
4. All our LCD panel will be tested pcs by pcs before been shipped out.
FAQ
1. Q: Where can I get the price?
A:We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we'll regard your inquiry priority.
2. Q: How can I get a sample to check your quality?
A: After price confirmation, you can require for samples to check our quality.
3. Q: What about the lead time for mass production?
A: It depends on your order quantity and the season you place the order.
4. Q: What are your terms of payment?
A: We accept T/T, Western Union, MoneyGram, PayPal.
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| K6483L-FF | CITIZEN | 7.8" | 640×480 |
| G6481L-FF | CITIZEN | 10.4" | 640×480 |
| K6484L-FF | CITIZEN | 8.4" | 640×480 |
| K6481L-FF | CITIZEN | 4.7" | 640×480 |
| K6488L-FF | CITIZEN | 6.0" | 640×480 |
| K3248H-FF | CITIZEN | 5.2" | 320×240 |
| K3247H-HL | CITIZEN | 2.8" | 320×240 |
| K3247H-FL | CITIZEN | 2.8" | 320×240 |

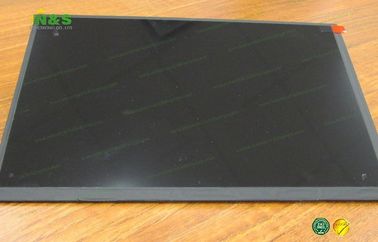

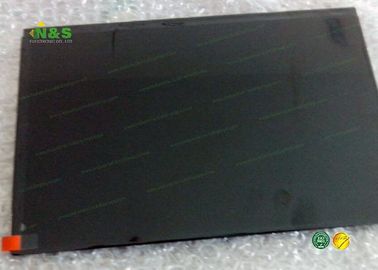

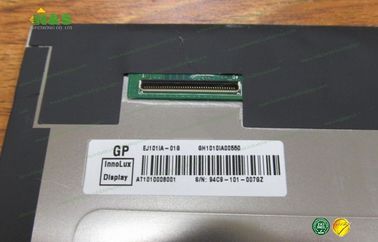

Details Picture for EJ101IA-01G
