Product Details:
|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 2.8 Inch |
|---|---|---|---|
| Resolution: | 240(RGB)×320 , QVGA | Display Mode: | TN, Normally White, TMR |
| Active Area: | 43.2×57.6 Mm | Outline: | 50×69.2 Mm |
| High Light: | samsung lcd panel replacement,samsung lcd display panel |
||
LMS283GF11 2.8 inch samsung lcd panel replacement 240×320 330 290:1 262K WLED CPU
LMS283GF11 Specification
| Panel Size : | 2.8 inch |
|---|---|
| Dot Resolution : | 240(RGB)×320 (QVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 141 PPI |
| Aspect Ratio : | 3:4 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.060×0.180 mm (H×V) |
| Pixel Pitch : | 0.180×0.180 mm (H×V) |
| Weight : | 13.5g (Typ.) |
| Active Area : | 43.2×57.6 mm (H×V) |
| Outline Dimension : | 50×69.2 mm (H×V) |
| Outline Depth : | 2.3 (Typ.) mm |
| Landscape or Portrait : | Portrait type |
| Touch Panel : | Without |
Our Advantages
Shipment for the LCD Display Panels:
1. Safe & Professional package for our LCD panels.
2. We can ship to you by UPS/FEDEX/DHL/TNT and so on. Other shipping terms can also be arranged according to specific requirements.
3. We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service.
4. All our LCD panel will be tested pcs by pcs before been shipped out.
| Display Mode : | TN, Normally White, TMR |
|---|---|
| Brightness : | 330 cd/m² (Typ.) |
| Contrast Ratio : | 290 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K (6-bit) |
| Color Gamut : | 60% NTSC (CIE1931) |
| Response Time : | 35 (Typ.)(Tr+Td) |
| Viewing Angle : | 50/50/50/20 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 12 o'clock |
| White color Chromaticity : | Wx:0.310; Wy:0.330 |
| White Variation : | 1.25/1.43 (Typ./Max.)(9 points) |
| Sunlight Readable : | Y |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| AMS465GS51 | Samsung | 4.7" | 720×1280 |
| AMS465GS47 | Samsung | 4.7" | 720×1280 |
| AMS477GV11 | Samsung | 4.8" | 720×1280 |
| AMS499QP59 | Samsung | 5.0" | 1080×1920 |
| AMS499QP53 | Samsung | 5.0" | 1080×1920 |
| AMS499QP07 | Samsung | 5.0" | 1080×1920 |
| AMS499QP01 | Samsung | 5.0" | 1080×1920 |

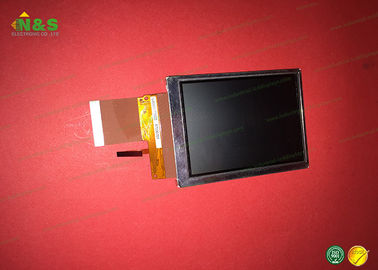

LMS283GF11 Picture
