PD104VT2T1 TFT LCD Module 10.4 inch LCM 640×480 330 400:1 262K CCFL TTL

PD104VT2T1 TFT LCD Module 10.4 inch LCM 640×480 330 400:1 262K CCFL TTL

PD104VT2T1 TFT LCD Module  10.4 inch LCM 	640×480  	330 	400:1 	262K 	CCFL 	TTL

Product Details:

Place of Origin: KOREA
Brand Name: PVI
Certification: ISO9001
Model Number: PD104VT2T1

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time: 1-3 Working Days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 500PCS/DAY
Contact Now
Detailed Product Description
Panel Brand: PVI Resolution: 640(RGB)×480 , VGA
Active Area: 211.2×158.4 Mm Outline: 243×185.1×13 Mm

PD104VT2T1 TFT LCD Module 10.4 inch LCM 640×480 330 400:1 262K CCFL TTL



PD104VT2T1 Specification

Panel Size : 10.4 inch
Dot Resolution : 640(RGB)×480 (VGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 76 PPI
Aspect Ratio : 4:3 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.110×0.330 mm (H×V)
Pixel Pitch : 0.330×0.330 mm (H×V)
Weight : 516g (Typ.)
Surface : Antiglare, Hard coating
Active Area : 211.2×158.4 mm (H×V)
Bezel Area : 215.2×162.4 mm (H×V)
Outline Dimension : 243×185.1 mm (H×V)
Outline Depth : 12.5±0.5 mm
Holes & Brackets : Face mounting holes (2-Φ3.5, 2-R1.75) on left, right bezel
Landscape or Portrait : Landscape type
Touch Panel : Without



Packaging & Delivery

Packaging Details:

Safey package

Plastic trays inside

2 layes of cartons

Fragile sign on top

Can be customize 3.5 inch spare parts auo used lcd panel

Delivery Detail: 1-3 Working Days



Quality Control:

  1. Visual Inspection

Make sure No damage, No Scratches, No dusty, No light leakage.

  1. Function Inspection

Make sure all functions are 100% tested ok



Display Mode : TN, Normally White, Transmissive
Brightness : 330 cd/m² (Typ.)
Contrast Ratio : 400 : 1 (Typ.) (Transmissive)
Display Color : 262K (6-bit)
Response Time : 15/25 (Typ.)(Tr/Td)
Viewing Angle : 45/45/15/40 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction : 6 o'clock
White color Chromaticity : Wx:0.309; Wy:0.337
White Variation : 1.25/1.43 (Typ./Max.)(9 points)
Sunlight Readable : N



Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
ED097TC1 E Ink 9.7" 1200×825
ET047TC1 E Ink 4.7" 540×960
ET040TC1 E Ink 4.0" 480×720
ED043WH1 E Ink 4.3" 480×800
ED043WC1 E Ink 4.3" 480×800
ED043WC3 E Ink 4.3" 480×800

We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

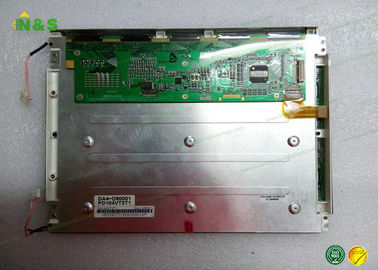

PD104VT2T1 Picture



PD104VT2T1 TFT LCD Module  10.4 inch LCM 	640×480  	330 	400:1 	262K 	CCFL 	TTL
