Product Details:
|
| Panel Brand: | PVI | Resolution: | 800(RGB)×600 , SVGA |
|---|---|---|---|
| Active Area: | 211.2×158.4 Mm | Outline: | 243×185.1×11 Mm |
| High Light: | tft lcd screen,tft lcd display module |
||
211.2×158.4 mm PD104ST1 TFT LCD Module 10.4 inch LCM 800×600 350 400:1 262K CCFL TTL
PD104ST1 Specification
| Panel Size : | 10.4 inch |
|---|---|
| Dot Resolution : | 800(RGB)×600 (SVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 96 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.088×0.264 mm (H×V) |
| Pixel Pitch : | 0.264×0.264 mm (H×V) |
| Weight : | 480g (Typ.) |
| Surface : | Antiglare, Hard coating |
| Active Area : | 211.2×158.4 mm (H×V) |
| Bezel Area : | 215.4×162.6 mm (H×V) |
| Outline Dimension : | 243×185.1 mm (H×V) |
| Outline Depth : | 7.5/11.0 (Typ./Max.) mm |
| Holes & Brackets : | Face mounting holes (2-R1.75, 2-Φ3.5) |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
| Display Mode : | TN, Normally White, Transmissive |
|---|---|
| Brightness : | 350 cd/m² (Typ.) |
| Contrast Ratio : | 400 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K (6-bit) |
| Response Time : | 15/25 (Typ.)(Tr/Td) |
| Viewing Angle : | 60/60/40/55 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.320; Wy:0.350 |
| White Variation : | 1.25/1.82 (Typ./Max.)(9 points) |
| Sunlight Readable : | N |
Up to now, over hundreds of aerospace, power management, network, communications, instrumentation and consumer electronics, etc are benefiting from our service and LCD screen panels.
We can do for you:
FAQ
Q1: What's the quality of your Hard Disk?
A: Various brands for hard disk etc. We are available to meet your different requirements.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 12-month warranty after shipping to assure you a stable performance.
Q4: How long is the lead time?
A: The lead time is about 2-3 working days after receipt of payment.
Q5: Do you accept sample order?
A:Yes, sample order is welcome.
Q6: How can I get the quotation?
A: Please enquire via Skype, Email, Whatsapp or telephone. You will get reply within 24 hours.
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| ED097TC1 | E Ink | 9.7" | 1200×825 |
| ET047TC1 | E Ink | 4.7" | 540×960 |
| ET040TC1 | E Ink | 4.0" | 480×720 |
| ED043WH1 | E Ink | 4.3" | 480×800 |
| ED043WC1 | E Ink | 4.3" | 480×800 |
| ED043WC3 | E Ink | 4.3" | 480×800 |
| ED060XD6 | E Ink | 6.0" | 758×1024 |
| SMA058HRG1 | E Ink | 5.8" | 600×448 |
| SMA058H7G1 | E Ink | 5.8" | 600×448 |

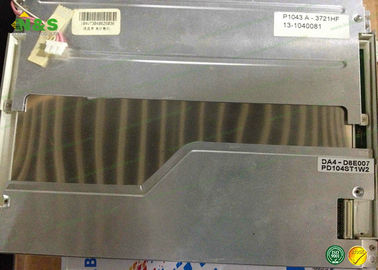

PD104ST1 Picture
