Product Details:
|
| Panel Type: | A-Si TFT-LCD , LCM | Active Area: | 270.336×202.752 Mm |
|---|---|---|---|
| Outline: | 297×218×9.5 Mm | Brightness: | 100 Cd/m² (Typ.) |
| Contrast Ratio: | 120:1 (Typ.) | Display Colors: | 262K (6-bit) , CIE1931 40% |
| High Light: | nec lcd touch screen,nec lcd screen |
||
13.3 Inch NL10276BC26-01 Nec Tft Lcd Panel , Normally White Laptop Lcd Screen
FAQ
Q1: What's the quality of your Hard Disk?
A: Various brands for hard disk etc. We are available to meet your different requirements.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 12-month warranty after shipping to assure you a stable performance.
Q4: How long is the lead time?
A: The lead time is about 2-3 working days after receipt of payment.
Q5: Do you accept sample order?
A:Yes, sample order is welcome.
Q6: How can I get the quotation?
A: Please enquire via Skype, Email, Whatsapp or telephone. You will get reply within 24 hours.
NL10276BC26-01 Detail
| Panel Brand : | NEC |
| Panel Model : | NL10276BC26-01 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 13.3 inch |
| Resolution : | 1024(RGB)×768 , XGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 270.336×202.752 mm |
| Outline : | 297×218×9.5 mm |
| Shape Style : | Wedge (PCBA Bent, Depth ≥5.2mm) |
| Brightness : | 100 cd/m² (Typ.) |
| Contrast Ratio : | 120:1 (Typ.) |
| Display Colors : | 262K (6-bit) , CIE1931 40% |
| Response Time : | 40 (Max.)(Tr) |
| Viewing Angle : | 45/45/25/35 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 1 pcs CCFL Without Driver |
| Signal Interface : | LVDS (2 ch, 6-bit) , 20 pins |
| Input Voltage : | 5.0V (Typ.) |
We Can Do for You:
1) One-to-one service with efficient & professional support;
2) Protection of your design and all your private information;
3) We could supply different hard disk for you.
4) Quality stability, can to provide certification of products;
5) Convenient payment methods: PayPal, T/T and Western Union;
6) Speedy shipment: we could arrange the shipment within 1-3 business days.
7) Quality & Service: Our priority has always been providing our clients with great quality products and superior customer service.
8) Unbeatable Prices: We continuously strive to find ways of reducing our production costs, and passing the savings to you.
| Panel Size : | 13.3 inch |
| Dot Resolution : | 1024(RGB)×768 (XGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 96 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.088×0.264 mm (H×V) |
| Pixel Pitch : | 0.264×0.264 mm (H×V) |
| Weight : | 635/650g (Typ./Max.) |
| Active Area : | 270.336×202.752 mm (H×V) |
| Bezel Area : | 274.4×206.8 mm (H×V) |
| Outline Dimension : | 297×218 mm (H×V) |
| Outline Depth : | 8.5/9.5 (Typ./Max.) mm |
| Shape Style : | Wedge (PCBA Bent, Depth ≥5.2mm) |
| Holes & Brackets : | Face mounting holes (4-R1.7) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| ED0970C1 | E Ink | 9.7" | 1200×825 |
| ED097OC1 | E Ink | 9.7" | 1200×825 |
| ED080XC2 | E Ink | 8.0" | 1024×768 |
| ED080XC1 | E Ink | 8.0" | 1024×768 |
| ED060SC3 | E Ink | 6.0" | 800×600 |
| ED050SC1 | E Ink | 5.0" | 800×600 |
| PD035QX7 | E Ink | 3.5" | 320×240 |
| PW070DS6 | E Ink | 7.0" | 480×234 |
| P1924QC1 | E Ink | 2.4" | 240×320 |
| PM049OX1 | E Ink | 4.9" | 266×600 |
| V1835HC1H1 | E Ink | 3.5" | 320×480 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

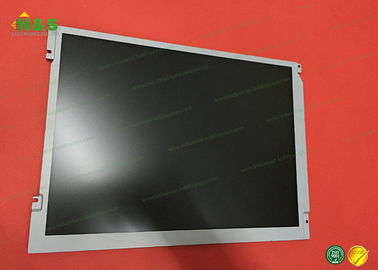

NL10276BC26-01 NEC LCD Panel Picture
