Product Details:
|
| Active Area: | 132.096×99.072 Mm | Outline: | 153×118×11.22 Mm |
|---|---|---|---|
| Brightness: | 490 Cd/m² (Typ.) | Contrast Ratio: | 500:1 (Typ.) |
| Display Colors: | 262K/16.7M (6-bit / 6-bit + Hi-FRC) , CIE1931 36% | Response Time: | 6/19 (Typ.)(Tr/Td) |
| Viewing Angle: | 80/80/80/60 (Typ.)(CR≥10) (L/R/U/D) | Signal Interface: | LVDS (1 Ch, 6/8-bit) , 20 Pins |
| High Light: | tft lcd panel,tft lcd display module |
||
6.5 inch NL10276BC13-01KA NLT LCD Panel LCM 1024×768 490 500:1 262K/16.7M WLED
NL10276BC13-01KA Detail
| Panel Brand : | NLT |
| Panel Model : | NL10276BC13-01KA |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 6.5 inch |
| Resolution : | 1024(RGB)×768 , XGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 132.096×99.072 mm |
| Outline : | 153×118×11.22 mm |
| Surface : | Clear |
| Brightness : | 490 cd/m² (Typ.) |
| Contrast Ratio : | 500:1 (Typ.) |
| Display Colors : | 262K/16.7M (6-bit / 6-bit + Hi-FRC) , CIE1931 36% |
| Response Time : | 6/19 (Typ.)(Tr/Td) |
| Viewing Angle : | 80/80/80/60 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 6 strings WLED Without Driver |
| Signal Interface : | LVDS (1 ch, 6/8-bit) , 20 pins |
| Input Voltage : | 3.3V (Typ.) |
What’s our advantage compared with other suppliers?
(1). Before shipment, we will test every LCD Screen and ensure the quality.
(2). we provide high quality lcd panels for customers all over the world.
(3) .We have DBS, ISO9001 Certifications for our Panels.
(4) .Excellent service on before-sale, on-sale and after-sale.
FAQ
Q1: Can I place sample order first?
A1: Yes, we will quote you different prices for small, medium and large qty. You can order with different price for different qty.
Q2: How could I pay them?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: How to place the order?
A3: Please send us your purchase order by e-mail, whatsapp or Skype or you can ask us to send you a Proforma Invoice for your order.
Q4: How long can I get my order?
A4: For samples, we will finish production and ship within 1-3 working days. For bulk orders, that will base on the order quantity.
Q5: How to send us the products?
A5: We usually use DHL, UPS, FedEx to ship our LCD screen replacements to our clients.
| Panel Size : | 6.5 inch |
| Dot Resolution : | 1024(RGB)×768 (XGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 196 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.043×0.129 mm (H×V) |
| Pixel Pitch : | 0.129×0.129 mm (H×V) |
| Weight : | TBD |
| Surface : | Clear |
| Active Area : | 132.096×99.072 mm (H×V) |
| Outline Dimension : | 153×118 mm (H×V) |
| Outline Depth : | 10.72±0.5 mm |
| Holes & Brackets : | Side mounting holes (4-M2) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Embeded (Projected Capacitive Touch) |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| NL6448HL11-02 | NLT | 3.5" | 640×480 |
| NL12876AC18-03KD | NLT | 10.6" | 1280×768 |
| NL12876AC18-03BD | NLT | 10.6" | 1280×768 |
| NL10276BC13-01BD | NLT | 6.5" | 1024×768 |
| NL10276BC28-27E | NLT | 14.1" | 1024×768 |
| NL10276BC28-24C | NLT | 14.1" | 1024×768 |
| NL2432HC22-30B | NLT | 3.5" | 240×320 |
| NL1216ER26-02 | NLT | 2.0" | 120×160 |
| NLB150XG01L-01BD | NLT | 15.0" | 1024×768 |
| NL10276BC30-34BD | NLT | 15.0" | 1024×768 |
| NL10276BC24-21BD | NLT | 12.1" | 1024×768 |
| NL10276BC20-18KH | NLT | 10.4" | 1024×768 |
| NL8048BC19-02BD | NLT | 7.0" | 800×480 |
| NL160120BM27-07 | NLT | 21.3" | 1600×1200 |
| NL2432HC22-36B | NLT | 3.5" | 240×320 |
| NL256204AM15-02A | NLT | 20.1" | 2560×2048 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

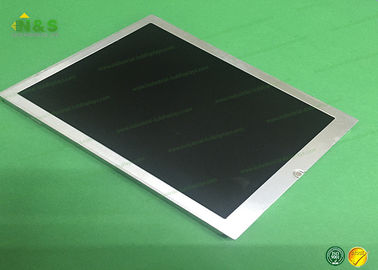

NL10276BC13-01KA NLT LCD Panel Picture
