Product Details:
|
Resolution: | 1024(RGB)×768 , XGA | Active Area: | 132.096×99.072 Mm |
---|---|---|---|
Brightness: | 400 Cd/m² (Typ.) | Contrast Ratio: | 500:1 (Typ.) |
High Light: | nec tft lcd,nec lcd screen |
NL10276BC13-01D 6.5 inch NEC LCD Panel Flat Rectangle Display with 132.096×99.072 mm
NL10276BC13-01D Specification
Panel Brand : | NEC |
Panel Model : | NL10276BC13-01D |
Panel Type : | a-Si TFT-LCD , LCM |
Panel Size : | 6.5 inch |
Resolution : | 1024(RGB)×768 , XGA |
Display Mode : | TN, Normally White, Transmissive |
Active Area : | 132.096×99.072 mm |
Outline : | 153×118 mm |
Surface : | Antiglare |
Brightness : | 400 cd/m² (Typ.) |
Contrast Ratio : | 500:1 (Typ.) |
Display Colors : | 262K/16.7M (6-bit / 6-bit + Hi-FRC) |
Viewing Angle : | 80/80/80/60 (Typ.)(CR≥10) (L/R/U/D) |
Frequency : | 60Hz |
Lamp Type : | WLED |
Signal Interface : | LVDS (1 ch, 6/8-bit) |
Our Promise for our LCD Panels:
You will get reply within 24 Hours and:
Year warranty
Day shipping
Return
Why Choose US:
1. Prompt reply within 12 hours.
2. Understand inquiry in any language.
3. Products with top quality.
4. Very competitive prices.
5. 6-year experience in industrial LCD Screen replacements.
6. Distributor of famous brands Panel: Samsung, LG, Sharp, AUO, TPO, Tianma, Mitsubishi and more.
7. Fabulous after-sale service.
Panel Size : | 6.5 inch |
Dot Resolution : | 1024(RGB)×768 (XGA) |
Pixel Configuration : | RGB Vertical Stripe |
Pixel Density : | 196 PPI |
Aspect Ratio : | 4:3 (H:V) |
Form Factor : | Flat Rectangle Display |
Dot Pitch : | 0.043×0.129 mm (H×V) |
Pixel Pitch : | 0.129×0.129 mm (H×V) |
Weight : | 170g (Typ.) |
Surface : | Antiglare |
Active Area : | 132.096×99.072 mm (H×V) |
Outline Dimension : | 153×118 mm (H×V) |
Outline Depth : | 9.0/9.5 (Typ./Max.) mm |
Landscape or Portrait : | Landscape type |
Touch Panel : | Without |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
Panel Model | Brand | Size | Resolution |
ED0970C1 | E Ink | 9.7" | 1200×825 |
ED097OC1 | E Ink | 9.7" | 1200×825 |
ED080XC2 | E Ink | 8.0" | 1024×768 |
ED080XC1 | E Ink | 8.0" | 1024×768 |
ED060SC3 | E Ink | 6.0" | 800×600 |
ED050SC1 | E Ink | 5.0" | 800×600 |
PD035QX7 | E Ink | 3.5" | 320×240 |
PW070DS6 | E Ink | 7.0" | 480×234 |
P1924QC1 | E Ink | 2.4" | 240×320 |

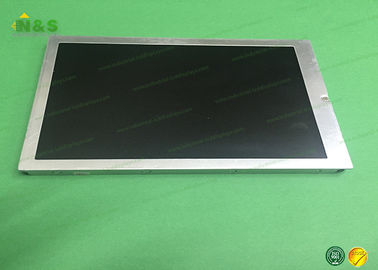

NL10276BC13-01D NEC LCD Panel Picture
