Product Details:
|
| Panel Type: | A-Si TFT-LCD , LCM | Resolution: | 640(RGB)×480 , VGA |
|---|---|---|---|
| Active Area: | 192×144 Mm | Outline: | 259.5×179 Mm |
| Brightness: | 90 Cd/m² (Typ.) | Contrast Ratio: | 110:1 (Typ.) |
| Response Time: | 40 (Typ.)(Tr+Td) | Display Colors: | 4096 (4-bit) , CIE1931 55% |
| High Light: | nec lcd touch screen,nec tft lcd |
||
NL6448AC30-06 Normally White NEC LCD Panel with 192×144 mm Active Area
Our service
1. Agent Brand:
* Our sourcing line contained but not limited to Samsung, LG, Sharp, AUO, Tianma, Chimei, Hannstar, Innolux, BOE and more bands tft lcd moulds from 2010, you can get the most competitive price for real products;
2. Quality to be guaranteed:
* All the panels are 100% original and brand new, no fake panels exists.Take the lcd screen from us, you can enjoy the real panels directly from original factory;
* Original package and Seal for batch orders, all the products are in original package from original factory directly, and all the LCD panels packages have labels and serial number, you can check them;
* We also have international logistic center in Hongkong to support your batch orders to be delivered from Hongkong directly.
* Products are sold to more than 20 countries.
* One year warranty .
6. The best TFT LCD solution:
*more tft lcd model detail information for the LCD screens including size, resolution, brightness, operating temperature or life time etc in our web site.
To get the latest prices, pls feel free to contact us.
NL6448AC30-06 Detail
| Panel Brand : | NEC |
| Panel Model : | NL6448AC30-06 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 9.4 inch |
| Resolution : | 640(RGB)×480 , VGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 192×144 mm |
| Outline : | 259.5×179 mm |
| Brightness : | 90 cd/m² (Typ.) |
| Contrast Ratio : | 110:1 (Typ.) |
| Display Colors : | 4096 (4-bit) , CIE1931 55% |
| Response Time : | 40 (Typ.)(Tr+Td) |
| Viewing Angle : | 45/45/30/30 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 1 pcs CCFL Embedded (Inverter) |
| Signal Interface : | CMOS (1 ch, 4-bit) , 34 pins |
| Input Voltage : | 5.0V (Typ.) |
N&S Delivery Details:
1) We are shipping this item to worldwide.
2) Our LCD panel orders processed within 1-3 working days of payment verification.
3) If you have not received the item on the Delivery Time. Please contact us. We will track the shipment and get back to your as soon as possible with a reply. Our goal is customer satisfaction.
5) We use the professional & safe package for our LCD screen replacements for you: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
6) We will keep you updated for the Tracking NO. after we ship out the parcel to you.
7) Feel free to contact to us if there is any problems during the shipment process.
| Panel Size : | 9.4 inch |
| Dot Resolution : | 640(RGB)×480 (VGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 84 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.10×0.30 mm (H×V) |
| Pixel Pitch : | 0.30×0.30 mm (H×V) |
| Weight : | 690g (Max.) |
| Active Area : | 192×144 mm (H×V) |
| Outline Dimension : | 259.5×179 mm (H×V) |
| Outline Depth : | 12.5 (Max.) mm |
| Holes & Brackets : | Face mounting holes (4-Φ3.5 pcs) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| ED0970C1 | E Ink | 9.7" | 1200×825 |
| ED097OC1 | E Ink | 9.7" | 1200×825 |
| ED080XC2 | E Ink | 8.0" | 1024×768 |
| ED080XC1 | E Ink | 8.0" | 1024×768 |
| ED060SC3 | E Ink | 6.0" | 800×600 |
| ED050SC1 | E Ink | 5.0" | 800×600 |
| PD035QX7 | E Ink | 3.5" | 320×240 |
| PW070DS6 | E Ink | 7.0" | 480×234 |

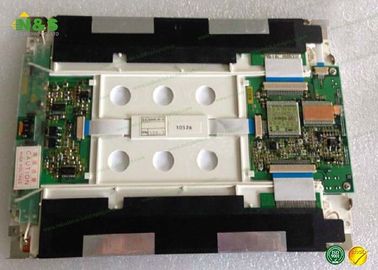

NL6448AC30-06 NEC LCD Panel Picture
