Product Details:
|
Outline Depth: | 4.8 (Typ.) Mm | Dot Resolution: | 480(RGB)×272 (WQVGA) |
---|---|---|---|
Dot Pitch: | 0.066×0.198 Mm (H×V) | Pixel Pitch: | 0.198×0.198 Mm (H×V) |
Weight: | 72.0/74.0g (Typ./Max.) | Outline Dimension: | 105.5×67.2 Mm (H×V) |
High Light: | nec tft lcd,nec lcd screen |
Hard coating NL4827HC19-05B lcd display panel 4.3 inch with 95.04×53.856 mm Active Area
NL4827HC19-05B Detail
Panel Brand : | NEC |
Panel Model : | NL4827HC19-05B |
Panel Type : | a-Si TFT-LCD , LCM |
Panel Size : | 4.3 inch |
Resolution : | 480(RGB)×272 , WQVGA |
Display Mode : | TN, Normally White, Transmissive |
Active Area : | 95.04×53.856 mm |
Outline : | 105.5×67.2 mm |
Surface : | Antiglare, Hard coating (3H) |
Brightness : | 500 cd/m² (Typ.) |
Contrast Ratio : | 500:1 (Typ.) |
Display Colors : | 16.7M (8-bit) , CIE1931 60% |
Response Time : | 33 (Typ.)(Tr+Td) |
Viewing Angle : | 50/50/70/40 (Typ.)(CR≥10) (L/R/U/D) |
Frequency : | 60Hz |
Lamp Type : | 2 strings WLED Without Driver |
Signal Interface : | CMOS (1 ch, 8-bit) , 51 pins |
Input Voltage : | 3.0/5.0V (Typ.)(VCC/VDD) |
We can do for You:
1. Quality Guarantee:
100% original new Hard Disk for you.
2.Fast reply:
Our well-developed management system enables us to reply any kind of customers' inquiry in 24 hours.
3.Delivery Guarantee:
Large Stock System, We have our own warehouses in Shenzhen and Hong Kong, with comprehensive supply lines.
4.After-Sale Service:
Professional support team to provide effective service, we are young and full of passion!
5. Professional acknowledgement of hard disks to provide customers with effective advice.
We have been in hard disk business for more than 6 years and know the main brands' hard disk very well.
6. Competitive quotation:
Our big customer network ensures us to provide large orders regularly for these original factories. What's more, our financial strength enables us to absorb large stock. All these make our price more and more competitive.
Packaging & Shipping:
Delivery Information:
Our professional testing team will test the LCD panels pcs by pcs, to make sure the LCD screen sent out are with good quality.
Shipping Method:
By Express: FedEx, DHL, EMS, TNT, UPS,
By Logistics: By air
Shipping Time:
From Monday to Saturday 8:00am-17:30pm
Shipping Address:
If by T/T, shipping address as communicate.
Panel Size : | 4.3 inch |
Dot Resolution : | 480(RGB)×272 (WQVGA) |
Pixel Configuration : | RGB Vertical Stripe |
Pixel Density : | 128 PPI |
Aspect Ratio : | 16:9 (H:V) |
Form Factor : | Flat Rectangle Display |
Dot Pitch : | 0.066×0.198 mm (H×V) |
Pixel Pitch : | 0.198×0.198 mm (H×V) |
Weight : | 72.0/74.0g (Typ./Max.) |
Surface : | Antiglare, Hard coating (3H) |
Active Area : | 95.04×53.856 mm (H×V) |
Outline Dimension : | 105.5×67.2 mm (H×V) |
Outline Depth : | 4.8 (Typ.) mm |
Landscape or Portrait : | Landscape type |
Touch Panel : | Embeded (4-wire Resistive) |
Below are our other LCD panels stock for your easy reference:
Panel Model | Brand | Size | Resolution |
ED097OC1 | E Ink | 9.7" | 1200×825 |
ED080XC2 | E Ink | 8.0" | 1024×768 |
ED080XC1 | E Ink | 8.0" | 1024×768 |
ED060SC3 | E Ink | 6.0" | 800×600 |
ED050SC1 | E Ink | 5.0" | 800×600 |
PD035QX7 | E Ink | 3.5" | 320×240 |
PW070DS6 | E Ink | 7.0" | 480×234 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

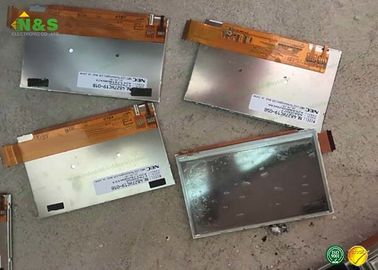

NL4827HC19-05B NEC LCD Panel Picture
